Lateral chromatic aberration

« Back to Glossary Index

Lens refraction depends on the wavelength. This means that magnification not only depends on the image field position but also on the light wavelength. A perfectly sharp edge going from white to black yields a smooth transition showing the decomposition of the light spectrum.

This has two major effects on the sensor. Each channel (usually R, G, B) is blurry because it integrates a certain range of wavelengths that are imaged at different positions on the sensor. Moreover, the different channels are shifted with respect to one another. This usually yields colored fringes along edges with a high level of contrast. DxOMark measures the maximal shift between the three color channels. This measure is a distance.

LCA is expressed in µm on 24×36 mm. 10 µm is a typical level of acceptability.

Light dispersion through a lens

What does DxOMark measure?

Lateral chromatic aberration is easily computed by considering the image of a black spot on a white background.
Mr is the center of the spot in the red channel, Mg in the green channel, Mb in the blue channel. LCA corresponds to the distances between the positions of Mb and Mg, and of Mr and Mg.

Calculation of chromatic aberration from the image of a dot

Using a target covered with black dots on a white background, we evaluate LCA all over the field.

We compute statistical data such as maximum and mean values for  the image, then we use a color scale to map those values as functions of focal length and aperture value.

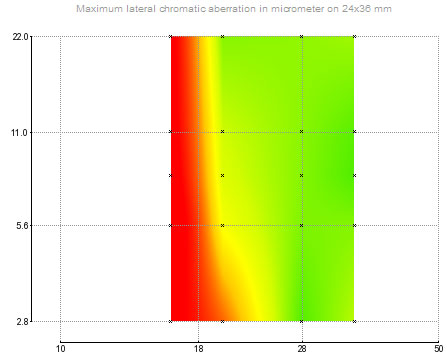

Maximum LCA functions of focal length and aperture

We plot curves that represent the variation as a function of the field position of the shifts between the red and green channels on the one hand, and between the blue and green channels on the other hand.

We measure LCA for each focal length and aperture.

LCA profile in the image field
We map the variation of the maximum of LCA in the image at each field position for different values of focal lengths and apertures.
LCA map in the image field
