Smartphones  >  Google Pixel Fold  >  Display Test Results
Google Pixel Fold
Ultra-Premium ?

Google Pixel Fold Display test

This device has been retested in the latest version of our protocol. Overall, sub-scores and attributes are up to date. For detailed information, check the What’s New article
OTHER AVAILABLE TESTS FOR THIS DEVICE

We put the Google Pixel Fold through our rigorous DXOMARK Display test suite to measure its performance across six criteria. In this results summary, we will break down how it fared in a variety of tests and several common use cases.

Overview

Key display specifications:

  • 7.6 inches OLED (~83.6% screen-to-body ratio)
  • Dimensions: 139.7 x 79.5 x 12.1 mm (5.50 x 3.13 x 0.48 inches)
  • Resolution: 1840 x 2208 pixels (~380 ppi density)
  • Aspect ratio: 6:5
  • Refresh rate: 120 Hz

Scoring

Sub-scores and attributes included in the calculations of the global score.

Google Pixel Fold Google Pixel Fold
145
display
155

164

137

165

143

163

140

164

Pros

  • Good color rendering in most lighting environments
  • Well-managed and pleasant HDR10 video experience
  • Well-managed brightness in most tested conditions

Cons

  • Sometimes lacks brightness after a few minutes in outdoor conditions
  • Lacks smoothness at times when browsing the web

The Google Pixel Fold put in a superlative performance in our Display testing, earning joint top position in the DXOMARK Display ranking. The device leads all devices in both its Ultra-premium segment as well as across the database thanks to very pleasant color rendering, a bright screen, and good adapted brightness and contrast for HDR10 video content. In addition, the Pixel Fold benefits from very good color management, with colors remaining faithful for both still and dynamic content.

The Pixel Fold offered smooth interactions in most uses, from gallery viewing to gaming; however, users might notice stutters when browsing the web. As with other foldable phones, the device was affected by a jello effect — a slight perceptible lag between the right and left sides of the display that can make the content appear a bit “bent.”

In a bright environment, reflections made the Fold’s crease visible. In sunny outdoor conditions, the display was hard to read when the device’s high brightness mode turned off after a few minutes.

Foldable devices can offer multiple foldable possibilities at various angles. The Google Pixel Fold performed very well in these typical conditions, offering limited color shifts only at under 30°, as well as keeping 75% of on-axis brightness at 60°. It ensures a good and comfortable experience even when half-folded.

With its very high-quality display and compelling management of aspects specifically related to foldable displays, the Google Pixel Fold delivers the best experience we’ve seen to date for such formats.

Test summary

About DXOMARK Display tests: For scoring and analysis in our smartphone and other display reviews, DXOMARK engineers perform a variety of objective and perceptual tests under controlled lab and real-life conditions. Note that we evaluate display attributes using only the device’s built-in display hardware and its still image (gallery) and video apps at their default settings. (For in-depth information about how we evaluate smartphone and other displays, check out our articles, “How DXOMARK tests display quality” and “A closer look at DXOMARK Display testing.

The following section gathers key elements of our exhaustive tests and analyses performed in DXOMARK laboratories. Detailed performance evaluations under the form of reports are available upon request. Do not hesitate to contact us.

Readability

155

Google Pixel Fold

164

Samsung Galaxy S24 Ultra
How Display Readability score is composed

Readability evaluates how easily and comfortably users can read still content (photos & web) on the display under different real-life conditions. DXOMARK uses its Display Bench to recreate ambient light conditions ranging from total darkness to bright sunlight. In addition to laboratory tests, perceptual analysis is also made in real-life environments.

Luminance under various lighting conditions
Contrast under various lighting conditions


Readability in a low-light (0 lux) environment
From left: Google Pixel Fold, Samsung Galaxy Z Fold4, Vivo X Fold, Oppo Find N
(Photos for illustration only)


Readability in an indoor (1000 lux) environment
From left: Google Pixel Fold, Samsung Galaxy Z Fold4, Vivo X Fold, Oppo Find N
(Photos for illustration only)


Readability in an outdoor (20 000 lux) environment
From left: Google Pixel Fold, Samsung Galaxy Z Fold4, Vivo X Fold, Oppo Find N
(Photos for illustration only)

Under bright light conditions, the Pixel Fold’s crease becomes more visible because reflections are more visible. Note that the crease of Pixel’s competitor, the Vivo X Fold, benefits from its anti-reflective film in this kind of environment.

Readability in a sunlight (>90 000 lux) environment
From left: Google Pixel Fold, Samsung Galaxy Z Fold4, Vivo X Fold, Oppo Find N
(Photos for illustration only)


Readability at a 45° angle



From left: Google Pixel Fold, Samsung Galaxy Z Fold4, Vivo X Fold, Oppo Find N
(Photos for illustration only)

Our engineers detected a small non-uniform patch on the right side of the main screen, but the impact on the user experience was low.

Luminance uniformity measurement
This graph shows the uniformity of the display with a 20% gray pattern. The more visible the green color, the more uniform the display.

Color

137

Google Pixel Fold

165

Google Pixel 8
How Display Color score is composed

The color attribute evaluates the capacity of the device to accurately reproduce colors. The measurements taken are for fidelity, white point color, and gamut coverage. We perform color evaluations for different lighting conditions to see how well the device can manage color in the surrounding environment. Colors are measured using a spectrophotometer in a controlled lighting environment. Perceptual analysis of color rendering is against the reference pattern displayed on a calibrated professional monitor.

White point under D65 illuminant at 1000 lux


Color rendering indoors (1000 lux)
Clockwise from top left: Google Pixel Fold, Samsung Galaxy Z Fold4, Vivo X Fold, Oppo Find N
(Photos for illustration only)


Color rendering outdoors (20 000 lux)
Clockwise from top left: Google Pixel Fold, Samsung Galaxy Z Fold4, Vivo X Fold, Oppo Find N
(Photos for illustration only)


Color rendering in sunlight (>90 000 lux)
Clockwise from top left: Google Pixel Fold, Samsung Galaxy Z Fold4, Vivo X Fold, Oppo Find N
(Photos for illustration only)

The Pixel Fold has very well-tuned color management, adapting the rendering to the content color profile. Some colors can appear somewhat saturated, but the Google renders skin tones very faithfully.

Color fidelity measurements

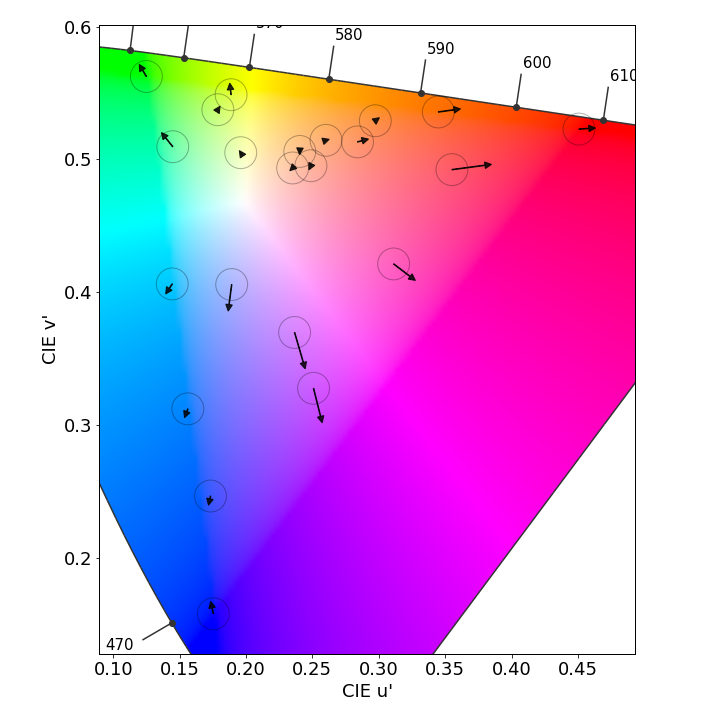

Google Pixel Fold, color fidelity at 1000 lux in the sRGB color space

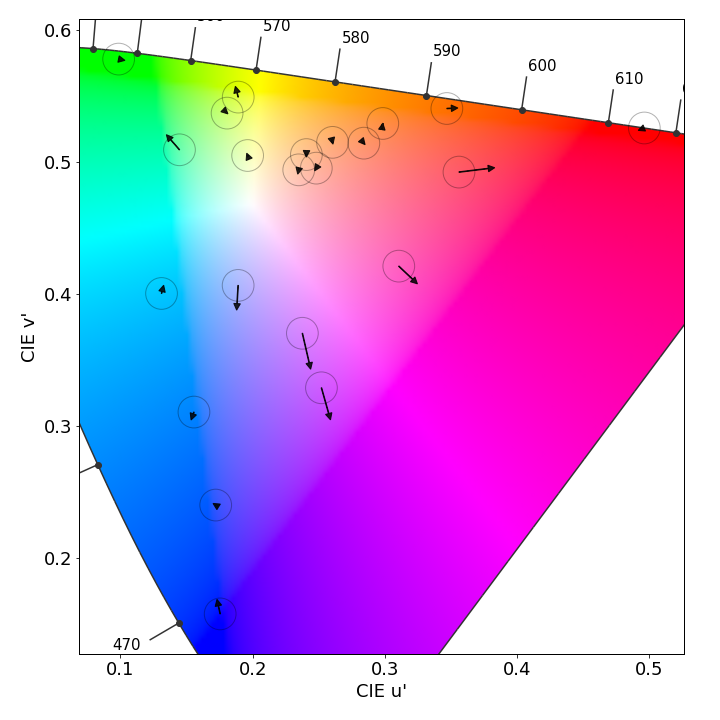

Google Pixel Fold, color fidelity at 1000 lux in the Display-P3 color space
Each arrow represents the color difference between a target color pattern (base of the arrow) and its actual measurement (tip of the arrow). The longer the arrow, the more visible the color difference is. If the arrow stays within the circle, the color difference will be visible only to trained eyes.

Color shifts on angle begin to be perceivable at around 25-30°. Past 30°, there is a pinkish color cast (visible in the illustration below) that then turns toward blue around 45°.

Color behavior on angle
This graph shows the color shift when the screen is at an angle. Each dot represents a measurement at a particular angle. Dots inside the inner circle exhibit no color shift in angle; those between the inner and outer circle have shifts that only trained experts will see; but those falling outside the outer circle are noticeable.


Color shift on angle
From left: Google Pixel Fold, Samsung Galaxy Z Fold4, Vivo X Fold, Oppo Find N
(Photos for illustration only)

White spectrum with/without Blue Light Filter
Spectrum measurement comparison of a white web page with the Blue Light Filter on and off.

Video

143

Google Pixel Fold

163

Samsung Galaxy S23
How Display Video score is composed

Our video attribute evaluates the Standard Dynamic Range (SDR) and High Dynamic Range (HDR10) video handling of each device in indoor and low-light conditions. We measure tone mapping, color gamut, brightness and contrast of the display. We perform perceptual analysis against our professional reference monitor (Sony BVM-HX310) to ensure that the rendering respects the artistic intent.

Video brightness at 10% APL in the dark ( < 5 lux)


Video rendering in a low-light (0 lux) environment
Clockwise from top left: Google Pixel Fold, Samsung Galaxy Z Fold4, Vivo X Fold, Oppo Find N
(Photos for illustration only)

Clockwise from top left: Google Pixel Fold, Samsung Galaxy Z Fold4, Vivo X Fold, Oppo Find N
(Photos for illustration only)

The Google Pixel Fold also automatically adapts its rendering to the video content color space.

Gamut coverage for video content
HDR10 Gamut coverage
SDR Gamut coverage
The primary colors are measured both in HDR10 and SDR. The extracted color gamut shows the extent of the color area that the device can render. To respect the artistic intent, the measured gamut should match the master color space of each video.

Motion

Google Pixel Fold

How Display Motion score is composed

The motion attribute evaluates the handling of dynamic contents. Frame drops, motion blur, and playback artifacts are scrutinized using games and videos.


Video frame drops
30 fps content
60 fps content
These long exposure photos present the number of frame irregularities in a 30-second video. A good performance shows a regular pattern (either a flat gray image or a pull-down pattern).

Touch

140

Google Pixel Fold

164

Google Pixel 7 Pro
How Display Touch score is composed

To evaluate touch, DXOMARK uses a touch robot and a high-speed camera to play and record a set of scenarios for smoothness, accuracy and response-time evaluation.

Average Touch Response Time Google Pixel Fold
89 ms
Fast
Good
Bad
Slow
This response time test precisely evaluates the time elapsed between a single touch of the robot on the screen and the displayed action. This test is applied to activities that require high reactivity, such as gaming.

Artifacts

Google Pixel Fold

How Display Artifacts score is composed

Evaluating artifacts means checking for the performance, image rendering and motion flaws that can affect the end-user experience. DXOMARK measures precisely the device’s reflectance and the presence of flicker, and assesses the impact of residual aliasing when playing video games, among other characteristics.

Average Reflectance (SCI) Google Pixel Fold
4.9 %
Low
Good
Bad
High
SCI stands for Specular Component Included, which measures both the diffuse reflection and the specular reflection. Reflection from a simple glass sheet is around 4%, while it reaches about 6% for a plastic sheet. Although smartphones’ first surface is made of glass, their total reflection (without coating) is usually around 5% due to multiple reflections created by the complex optical stack.
Reflectance (SCI)
Measurements above show the reflection of the device within the visible spectrum range (400 nm to 700 nm). It includes both diffuse and specular reflection.
PWM Frequency Google Pixel Fold
240 Hz
Bad
Good
Bad
Great
Displays flicker for 2 main reasons: refresh rate and Pulse Width Modulation. Pulse width modulation is a modulation technique that generates variable-width pulses to represent the amplitude of an analog input signal. This measurement is important for comfort because flickering at low frequencies can be perceived by some individuals, and in the most extreme cases, can induce seizures. Some experiments show that discomfort can appear at a higher frequency. A high PWM frequency (>1500 Hz) tends to be less disturbing for users.
Temporal Light Modulation
This graph represents the frequencies of lighting variation; the highest peak gives the main flicker frequency. The combination of a low frequency and a high peak is susceptible to inducing eye fatigue. Displays flicker for 2 main reasons: refresh rate and Pulse Width Modulation. This measurement is important for comfort because flickering at low frequencies can be perceived by some individuals, and in the most extreme cases, can induce seizures. Some experiments show that discomfort can appear at a higher frequency. A high PWM frequency (>1500 Hz) tends to be safer for users.
Aliasing (closeup)
Google Pixel Fold
(Photo for illustration only)
