Honor Magic4 Pro Display test

This device has been retested in the latest version of our protocol. Overall, sub-scores and attributes are up to date. For detailed information, check the What’s New article
OTHER AVAILABLE TESTS FOR THIS DEVICE

We put the Honor Magic4 Pro through our rigorous DXOMARK Display test suite to measure its performance across six criteria. In this test results, we will break down how it fared in a variety of tests and several common use cases.

Overview

Key display specifications:

  • 6.81 inches (LTPO) OLED, (~92.9% screen-to-body ratio)
  • Dimensions: 163.6 x 74.7 x 9.15 mm (6.44 x 2.94 x 0.36 inches)
  • Resolution: 1312 x 2848 pixels, (~460 ppi density)
  • Aspect ratio: 19.54:9
  • Refresh rate: 120 Hz

Scoring

Sub-scores and attributes included in the calculations of the global score.

Honor Magic4 Pro
130
display
136

160

151

163

120

162

79

155

143

165

122

149

Please be aware that beyond this point, we have not modified the initial test results. While data and products remain fully comparable, you might encounter mentions and references to the previous scores.

Pros

  • Well-managed colors in most tested conditions
  • Flicker-free display
  • No frame mismatches when playing video games

Cons

  • Brightness that is too high and unstable when watching HDR10 videos
  • Many visible frame mismatches when viewing HDR10 videos
  • In low-light conditions, brightness levels depend on the app being used, which in some cases is too bright

The Honor Magic4 Pro display put in a strong performance for color rendering, with colors that were well managed in all tested conditions. The device’s high screen-to-body ratio and a basically flicker-free display also meant that the Magic4 Pro had very few artifacts, which earned it a high score in this attribute. However, the device was a bit fickle when it came to brightness in low-light conditions because the brightness level would depend on the app in use. For example, the screen would be noticeably too bright when browsing the web in low-light conditions. Unstable brightness levels in low-light conditions also affected the video-watching experience, as did the noticeable frame drops. Our testing showed that the Magic4 Pro had many more frame drops than the Magic4 Ultimate.
This is a good device for gaming thanks to a fast touch to display response time and a good smoothness.

Test summary

About DXOMARK Display tests: For scoring and analysis in our smartphone and other display reviews, DXOMARK engineers perform a variety of objective and perceptual tests under controlled lab and real-life conditions. Note that we evaluate display attributes using only the device’s built-in display hardware and its still image (gallery) and video apps at their default settings. (For in-depth information about how we evaluate smartphone and other displays, check out our articles, “How DXOMARK tests display quality” and “A closer look at DXOMARK Display testing.

The following section gathers key elements of our exhaustive tests and analyses performed in DXOMARK laboratories. Detailed performance evaluations under the form of reports are available upon request. Do not hesitate to contact us.

Readability

136

Honor Magic4 Pro

160

Apple iPhone 14 Pro Max
How Display Readability score is composed

Readability evaluates how easily and comfortably users can read still content (photos & web) on the display under different real-life conditions. DXOMARK uses its Display Bench to recreate ambient light conditions ranging from total darkness to bright sunlight. In addition to laboratory tests, perceptual analysis is also made in real-life environments.

Brightness under various lighting conditions
Contrast under various lighting conditions

Readability in a low-light (0 lux) environment
From left to right: Honor Magic4 Pro, Honor Magic4 Ultimate, Apple iPhone 13 Pro Max, Samsung Galaxy S22+ (Exynos)
(Photos for illustration only)

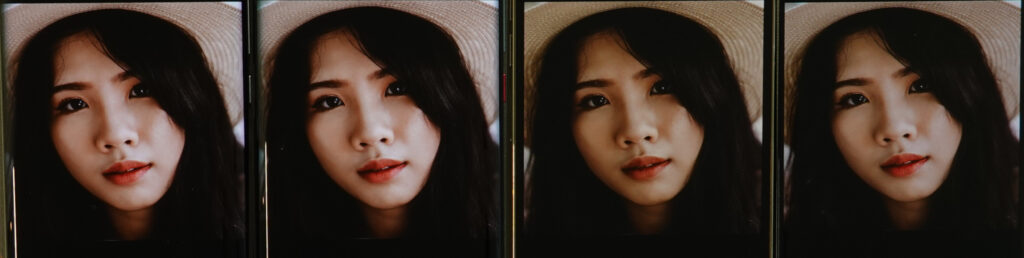

Readability in an indoor (1000 lux) environment
From left to right: Honor Magic4 Pro, Honor Magic4 Ultimate,Apple iPhone 13 Pro Max,Samsung Galaxy S22+ (Exynos)
(Photos for illustration only)

Luminance uniformity measurement

This graph shows the uniformity of the display with a 20% gray pattern. The more visible the green color, the more uniform the display.

Color

151

Honor Magic4 Pro

163

Sony Xperia 5 IV
How Display Color score is composed

The color attribute evaluates the capacity of the device to accurately reproduce colors. The measurements taken are for fidelity, white point color, and gamut coverage. We perform color evaluations for different lighting conditions to see how well the device can manage color in the surrounding environment. Colors are measured using a spectrophotometer in a controlled lighting environment. Perceptual analysis of color rendering is against the reference pattern displayed on a calibrated professional monitor.

White point under D65 illuminant at 1000 lux

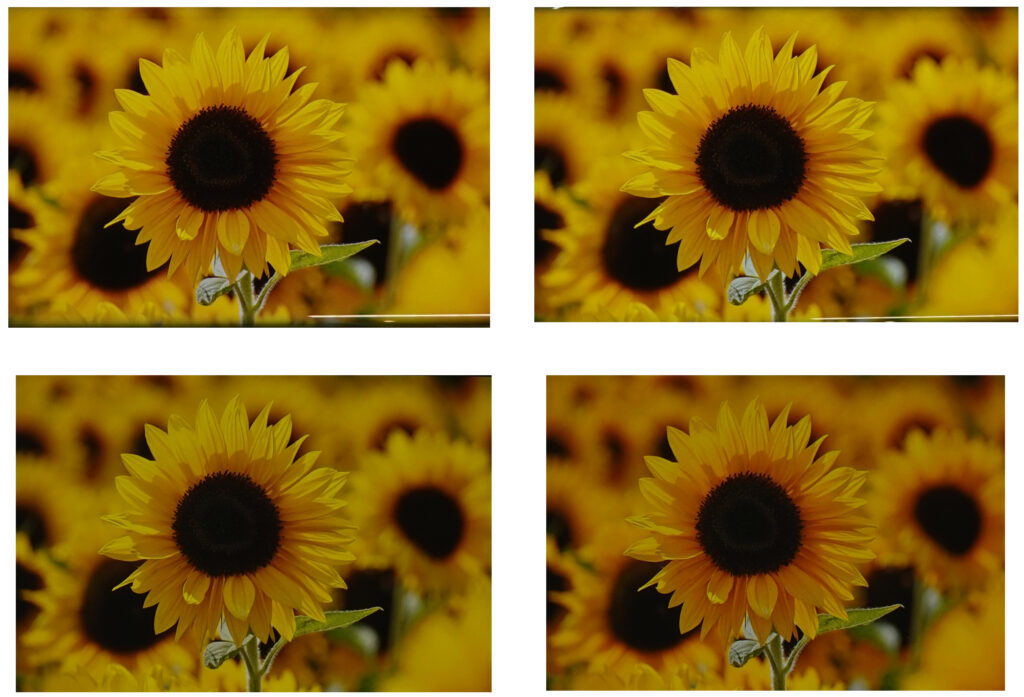

Color rendering indoors (1000 lux)
Clockwise from top left: Honor Magic4 Pro, Honor Magic4 Ultimate, Samsung Galaxy S22+ (Exynos), Apple iPhone 13 Pro Max
(Photos for illustration only)

Color fidelity measurements

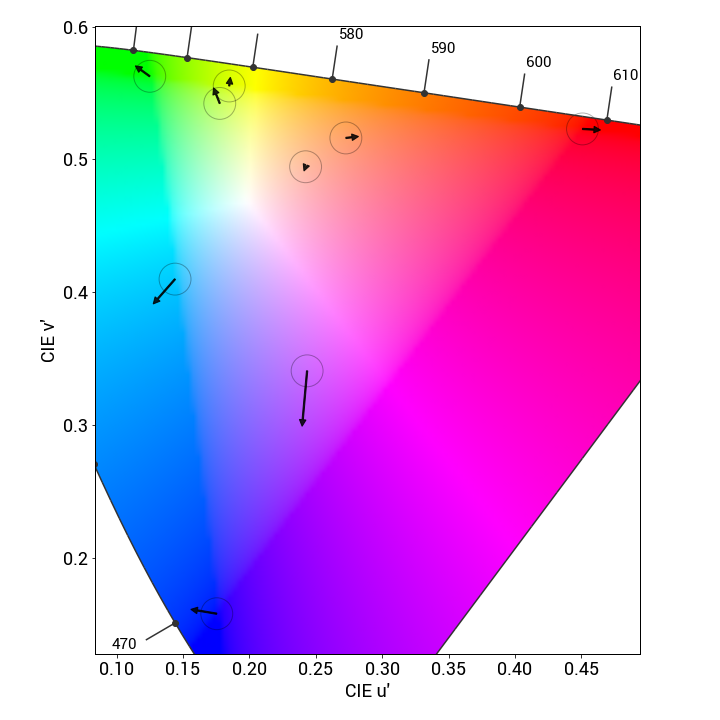

Honor Magic4 Pro, color fidelity at 1000 lux in the sRGB color space

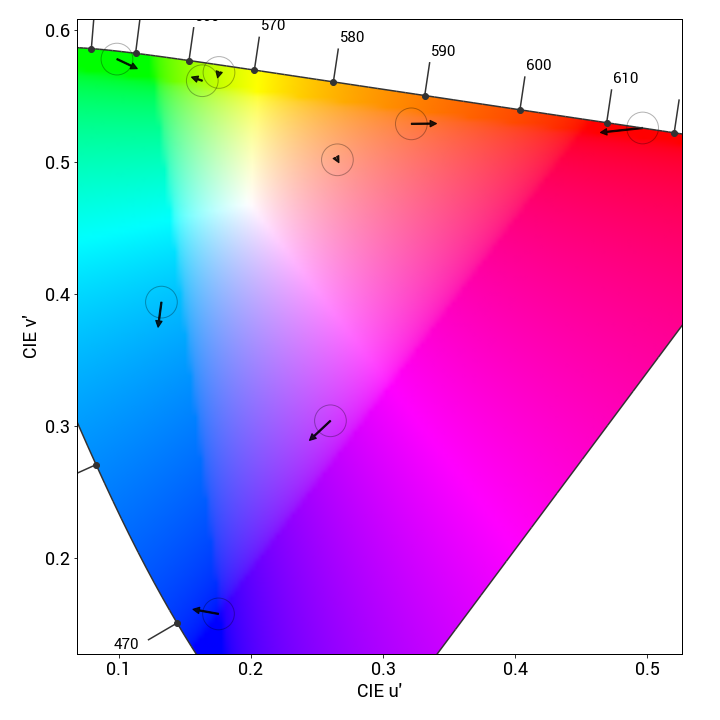

Honor Magic4 Pro, color fidelity at 1000 lux in the DCI-P3 color space
Each arrow represents the color difference between a target color pattern (base of the arrow) and its actual measurement (tip of the arrow). The longer the arrow, the more visible the color difference is. If the arrow stays within the circle, the color difference will be visible only to trained eyes.
Color behavior on angle
This graph shows the color shift when the screen is at an angle. Each dot represents a measurement at a particular angle. Dots inside the inner circle exhibit no color shift in angle; those between the inner and outer circle have shifts that only trained experts will see; but those falling outside the outer circle are noticeable.

Video

120

Honor Magic4 Pro

162

Samsung Galaxy S22 Ultra (Snapdragon)
How Display Video score is composed

Our video attribute evaluates the Standard Dynamic Range (SDR) and High Dynamic Range (HDR10) video handling of each device in indoor and low-light conditions. We measure tone mapping, color gamut, brightness and contrast of the display. We perform perceptual analysis against our professional reference monitor (Sony BVM-HX310) to ensure that the rendering respects the artistic intent.

Video brightness at 10% APL in the dark ( < 5 lux)


Video rendering in a low-light (0 lux) environment
Clockwise from top left: Honor Magic4 Pro, Honor Magic4 Ultimate,Samsung Galaxy S22+ (Exynos),Apple iPhone 13 Pro Max
(Photos for illustration only)

Gamut coverage for video content
HDR10 Gamut coverage
SDR Gamut coverage
The primary colors are measured both in HDR10 and SDR. The extracted color gamut shows the extent of the color area that the device can render. To respect the artistic intent, the measured gamut should match the master color space of each video.

Motion

79

Honor Magic4 Pro

155

Huawei P40 Pro
How Display Motion score is composed

The motion attribute evaluates the handling of dynamic contents. Frame drops, motion blur, and playback artifacts are scrutinized using games and videos.

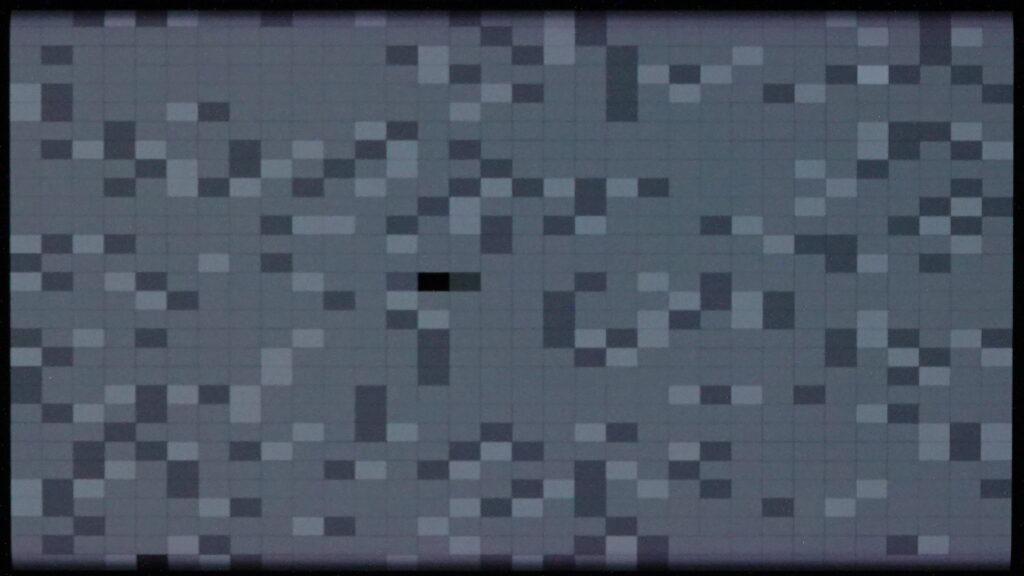

Video frame drops at 30 fps
Honor Magic4 Pro
Honor Magic4 Ultimate

These long exposure photos present the number of frame irregularities in a 30-second video. A good performance shows a regular pattern (either a flat gray image or a pull-down pattern).

Touch

143

Honor Magic4 Pro

165

OnePlus 9
How Display Touch score is composed

To evaluate touch, DXOMARK uses a touch robot and a high-speed camera to play and record a set of scenarios for smoothness, accuracy and response-time evaluation.

Average Touch Response Time Honor Magic4 Pro
65 ms
Fast
Good
Bad
Slow
This response time test evaluates precisely the time elapsed between a single touch of the robot on the screen and the displayed action. This test is applied to activities that require a high reactivity, such as gaming.

Artifacts

122

Honor Magic4 Pro

149

LG Wing

How Display Artifacts score is composed

Evaluating artifacts means checking for the performance, image rendering and motion flaws that can affect the end-user experience. DXOMARK measures precisely the device’s reflectance and the presence of flicker, and assesses the impact of residual aliasing when playing video games, among other characteristics.

Average Reflectance (SCI) Honor Magic4 Pro
4.7 %
Low
Good
Bad
High
Reflectance measurement (SCI)
Measurements above show the reflection of the device within the visible spectrum range (400 nm to 700 nm). It includes both diffuse and specular reflection.
Flicker Frequency Honor Magic4 Pro
1910 Hz
Bad
Good
Bad
Great
Flicker comparison
This graph represents the frequencies of lighting variation; the highest peak gives the main flicker frequency.
