Motorola Edge 30 Pro Display test

OTHER AVAILABLE TESTS FOR THIS DEVICE

We put the Motorola Edge 30 Pro through our rigorous DXOMARK Display test suite to measure its performance across six criteria. In this test results, we will break down how it fared in a variety of tests and several common use cases.

Overview

Key display specifications:

  • 6.7 inches OLED, (~88.4% screen-to-body ratio)
  • Dimensions: 163.1 x 75.95 x 8.8 mm
  • Resolution: 1080 x 2400 pixels, (~393 ppi density)
  • Aspect ratio: 20:9
  • Refresh rate: 144 Hz
Motorola Edge 30 Pro
86
display
68

76

78

91

62

91

76

87

83

85

79

86

Pros

  • Smoothness while playing video games, browsing the web, or using gallery app
  • Very responsive in touch-to-display response time
  • Smooth brightness adaptations  when changing light environments

Cons

  • Too bright when watching HDR10 videos
  • Too much contrast in midtones, and  dark tones that are too dark in HDR10 content
  • Visible pink cast in most light environments

The Motorola Edge 30 Pro’s display turned out to be great when playing video games because of its smooth touch rendering and its fast touch-to-response time. That touch smoothness was evident when browsing the web and using the photo applications. The brightness on the display adapted discreetly when the lighting environment changed. However, one of the display’s drawbacks included a screen that was blindingly too-bright at night, making readability very uncomfortable. Watching HDR10 videos also showed contrast levels that were incorrect.

Test summary

About DXOMARK Display tests: For scoring and analysis in our smartphone and other display reviews, DXOMARK engineers perform a variety of objective and perceptual tests under controlled lab and real-life conditions. Note that we evaluate display attributes using only the device’s built-in display hardware and its still image (gallery) and video apps at their default settings. (For in-depth information about how we evaluate smartphone and other displays, check out our articles, “How DXOMARK tests display quality” and “A closer look at DXOMARK Display testing.

The following section gathers key elements of our exhaustive tests and analyses performed in DXOMARK laboratories. Detailed performance evaluations under the form of reports are available upon request. Do not hesitate to contact us.

Readability

68

Motorola Edge 30 Pro

76

Apple iPhone 13 Pro Max
How Display Readability score is composed

Readability evaluates how easily and comfortably users can read still content (photos & web) on the display under different real-life conditions. DXOMARK uses its Display Bench to recreate ambient light conditions ranging from total darkness to bright sunlight. In addition to laboratory tests, perceptual analysis is also made in real-life environments.

Brightness under various lighting conditions
Contrast under various lighting conditions
Readability in an outdoor (20 000 lux) environment
From left to right: Motorola Edge 30 Pro, Motorola Edge 20 Pro, Realme GT 2 Pro
(Photos for illustration only)

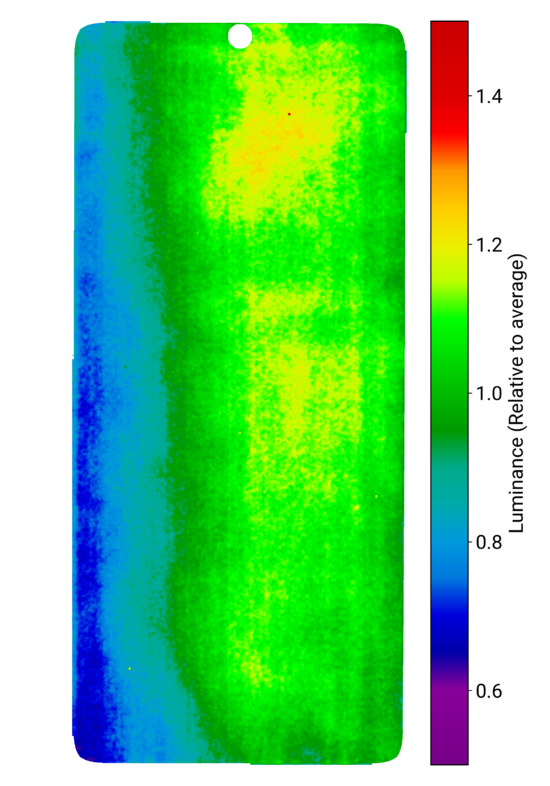

Luminance uniformity measurement

This graph shows the uniformity of the display with a 20% gray pattern. The more visible the green color, the more uniform the display.

Color

78

Motorola Edge 30 Pro

91

Oppo Find X5 Pro
How Display Color score is composed

The color attribute evaluates the capacity of the device to accurately reproduce colors. The measurements taken are for fidelity, white point color, and gamut coverage. We perform color evaluations for different lighting conditions to see how well the device can manage color in the surrounding environment. Colors are measured using a spectrophotometer in a controlled lighting environment. Perceptual analysis of color rendering is against the reference pattern displayed on a calibrated professional monitor.

White point under D65 illuminant at 1000 lux
Color rendering indoors (1000 lux)
From left to right: Motorola Edge 30 Pro, Motorola Edge 20 Pro, Realme GT 2 Pro
(Photos for illustration only)
Color fidelity measurements

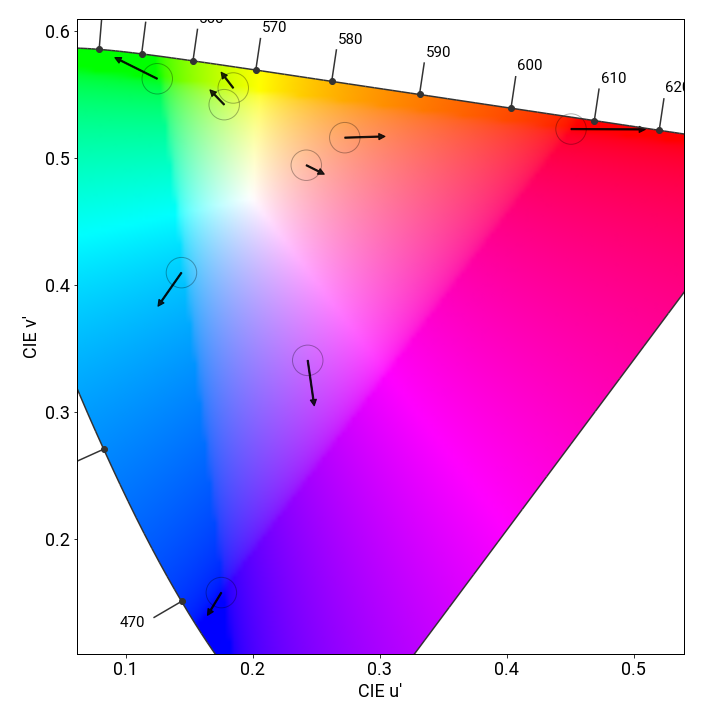

Motorola Edge 30 Pro, color fidelity at 1000 lux in the sRGB color space

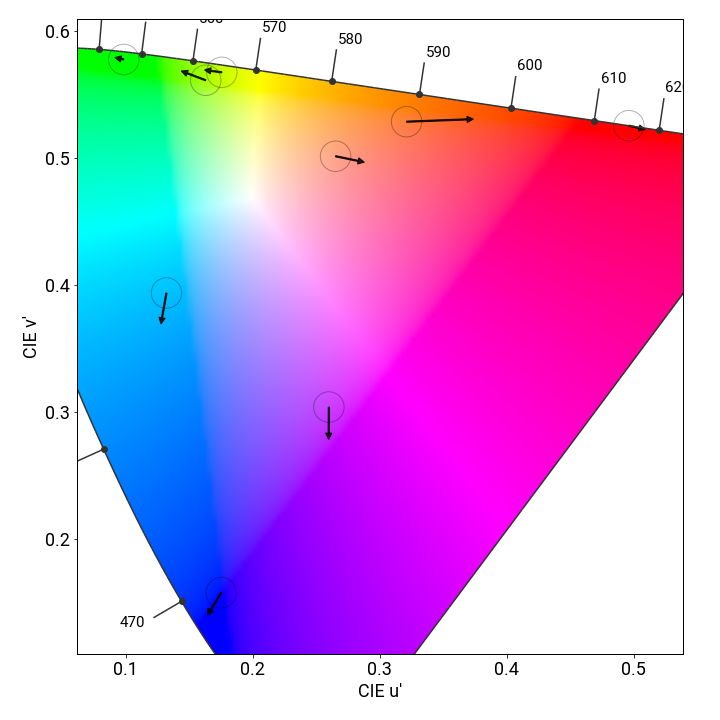

Motorola Edge 30 Pro, color fidelity at 1000 lux in the DCI-P3 color space
Each arrow represents the color difference between a target color pattern (base of the arrow) and its actual measurement (tip of the arrow). The longer the arrow, the more visible the color difference is. If the arrow stays within the circle, the color difference will be visible only to trained eyes.
Color behavior on angle
This graph shows the color shift when the screen is at an angle. Each dot represents a measurement at a particular angle. Dots inside the inner circle exhibit no color shift in angle; those between the inner and outer circle have shifts that only trained experts will see; but those falling outside the outer circle are noticeable.



Video

62

Motorola Edge 30 Pro

91

Samsung Galaxy S22 Ultra (Snapdragon)
How Display Video score is composed

Our video attribute evaluates the Standard Dynamic Range (SDR) and High Dynamic Range (HDR10) video handling of each device in indoor and low-light conditions. We measure tone mapping, color gamut, brightness and contrast of the display. We perform perceptual analysis against our professional reference monitor (Sony BVM-HX310) to ensure that the rendering respects the artistic intent.



Video brightness at 10% APL in the dark ( < 5 lux)
Video rendering in a low-light (0 lux) environment
Clockwise from top: Motorola Edge 30 Pro, Motorola Edge 20 Pro, Realme GT 2 Pro
(Photos for illustration only)
Gamut coverage for video content
HDR10 Gamut coverage
SDR Gamut coverage
The primary colors are measured both in HDR10 and SDR. The extracted color gamut shows the extent of the color area that the device can render. To respect the artistic intent, the measured gamut should match the master color space of each video.



Motion

76

Motorola Edge 30 Pro

87

Huawei P40 Pro
How Display Motion score is composed

The motion attribute evaluates the handling of dynamic contents. Frame drops, motion blur, and playback artifacts are scrutinized using games and videos.

Video frame drops
30 fps content
60 fps content
These long exposure photos present the number of frame irregularities in a 30-second video. A good performance shows a regular pattern (either a flat gray image or a pull-down pattern).

Touch

83

Motorola Edge 30 Pro

85

OnePlus 9
How Display Touch score is composed

To evaluate touch, DXOMARK uses a touch robot and a high-speed camera to play and record a set of scenarios for smoothness, accuracy and response-time evaluation.

Average Touch Response Time Motorola Edge 30 Pro
59 ms
Fast
Good
Bad
Slow
This response time test evaluates precisely the time elapsed between a single touch of the robot on the screen and the displayed action. This test is applied to activities that require a high reactivity, such as gaming.

Artifacts

79

Motorola Edge 30 Pro

86

Apple iPhone 13 Pro Max

How Display Artifacts score is composed

Evaluating artifacts means checking for the performance, image rendering and motion flaws that can affect the end-user experience. DXOMARK measures precisely the device’s reflectance and the presence of flicker, and assesses the impact of residual aliasing when playing video games, among other characteristics.

Average Reflectance (SCI) Motorola Edge 30 Pro
4.6 %
Low
Good
Bad
High
Reflectance measurement (SCI)
Measurements above show the reflection of the device within the visible spectrum range (400 nm to 700 nm). It includes both diffuse and specular reflection.
Flicker Frequency Motorola Edge 30 Pro
710 Hz
Bad
Good
Bad
Great
Flicker comparison
This graph represents the frequencies of lighting variation; the highest peak gives the main flicker frequency.
