We put the OnePlus 10 Pro through our rigorous DXOMARK Display test suite to measure its performance across six criteria. This article breaks down how it fared in a variety of tests and several common use cases.
Overview
Key display specifications:
- 6.7 inches OLED LTPO
- Dimensions: 163.0 x 73.9 x 8.55 mm
- Resolution: 1440 x 3216 pixels, (~525 ppi density)
- Aspect ratio: 20.1:9
- Refresh rate: 120 Hz
Scoring
Sub-scores and attributes included in the calculations of the global score.
OnePlus 10 Pro
124
display
120
Samsung Galaxy S24 Ultra
Best: Samsung Galaxy S24 Ultra (164)
157
Google Pixel 8
Best: Google Pixel 8 (165)
104
Samsung Galaxy Z Fold6
Best: Samsung Galaxy Z Fold6 (165)
135
Google Pixel 7 Pro
Best: Google Pixel 7 Pro (164)
Please be aware that beyond this point, we have not modified the initial test results. While data and products remain fully comparable, you might encounter mentions and references to the previous scores.
Position in Global Ranking
111
th
4. Samsung Galaxy S24 Ultra
155
5. Samsung Galaxy Z Fold6
154
5. Samsung Galaxy S24+ (Exynos)
154
5. Samsung Galaxy S24 (Exynos)
154
11. Google Pixel 9 Pro Fold
152
12. Apple iPhone 15 Pro Max
151
17. Apple iPhone 16 Pro Max
150
17. Samsung Galaxy Z Flip6
150
21. Samsung Galaxy S23 Ultra
148
26. Samsung Galaxy A55 5G
147
29. Apple iPhone 14 Pro Max
146
34. Samsung Galaxy Z Flip5
144
36. Asus Zenfone 11 Ultra
143
36. Samsung Galaxy A35 5G
143
39. Apple iPhone 13 Pro Max
142
39. Samsung Galaxy Z Fold5
142
44. Samsung Galaxy S23 FE
140
48. Honor Magic4 Ultimate
138
59. Samsung Galaxy S22 Ultra (Snapdragon)
135
59. Xiaomi Redmi Note 13 Pro Plus 5G
135
64. Samsung Galaxy S22+ (Exynos)
134
67. Samsung Galaxy Z Flip4
133
67. Samsung Galaxy S22 Ultra (Exynos)
133
67. Samsung Galaxy S22 (Snapdragon)
133
67. Vivo X80 Pro (MediaTek)
133
72. Samsung Galaxy S22 (Exynos)
132
77. Samsung Galaxy S21 Ultra 5G (Exynos)
131
77. Vivo X80 Pro (Snapdragon)
131
81. Samsung Galaxy Z Fold4
130
81. Samsung Galaxy S21 Ultra 5G (Snapdragon)
130
81. Samsung Galaxy S21 FE 5G (Snapdragon)
130
92. Samsung Galaxy A54 5G
129
96. Apple iPhone 12 Pro Max
127
100. Vivo X60 Pro 5G (Snapdragon)
126
117. Motorola Edge 30 Pro
123
121. Apple iPhone 11 Pro Max
122
121. Motorola Edge 40 Pro
122
125. Apple iPhone SE (2022)
120
131. Samsung Galaxy A52 5G
114
133. Motorola Razr 40 Ultra
113
136. Crosscall Stellar-X5
109
137. Samsung Galaxy A53 5G
108
143. Samsung Galaxy A22 5G
82
Position in Ultra-Premium Ranking
73
rd
3. Samsung Galaxy S24 Ultra
155
4. Samsung Galaxy Z Fold6
154
4. Samsung Galaxy S24+ (Exynos)
154
8. Google Pixel 9 Pro Fold
152
9. Apple iPhone 15 Pro Max
151
13. Apple iPhone 16 Pro Max
150
13. Samsung Galaxy Z Flip6
150
16. Samsung Galaxy S23 Ultra
148
22. Apple iPhone 14 Pro Max
146
26. Samsung Galaxy Z Flip5
144
28. Asus Zenfone 11 Ultra
143
30. Apple iPhone 13 Pro Max
142
30. Samsung Galaxy Z Fold5
142
35. Honor Magic4 Ultimate
138
42. Samsung Galaxy S22 Ultra (Snapdragon)
135
44. Samsung Galaxy S22+ (Exynos)
134
46. Samsung Galaxy Z Flip4
133
46. Samsung Galaxy S22 Ultra (Exynos)
133
46. Vivo X80 Pro (MediaTek)
133
53. Samsung Galaxy S21 Ultra 5G (Exynos)
131
53. Vivo X80 Pro (Snapdragon)
131
57. Samsung Galaxy Z Fold4
130
57. Samsung Galaxy S21 Ultra 5G (Snapdragon)
130
65. Apple iPhone 12 Pro Max
127
78. Apple iPhone 11 Pro Max
122
80. Motorola Razr 40 Ultra
113
Pros
- Accurate color rendering in most tested conditions, both on angle and on axis
- Very uniform in color and brightness
- Very few frame mismatches when playing videos and video games
Cons
- No details in dark tones and highly saturated colors in HDR10 videos
- Lack of readability in outdoor conditions
- Lack of smoothness in several apps (for example, Instagram)
The OnePlus 10 Pro has excellent color rendering and comes with good readability in indoor conditions. It is a bit difficult to read in outdoor and low-light conditions, but more importantly, it does not offer a good experience when watching HDR10 videos. The gaming experience is smooth and comfortable, although aliasing is visible and corners are not very responsive to touch.
We compared the OnePlus 10 Pro to its predecessor, the OnePlus 9 Pro, as well as to two direct competitors, the Oppo Find X5 Pro and the Google Pixel 6 Pro.
Test summary
About DXOMARK Display tests: For scoring and analysis in our smartphone and other display reviews, DXOMARK engineers perform a variety of objective and perceptual tests under controlled lab and real-life conditions. Note that we evaluate display attributes using only the device’s built-in display hardware and its still image (gallery) and video apps at their default settings. (For in-depth information about how we evaluate smartphone and other displays, check out our articles, “How DXOMARK tests display quality” and “A closer look at DXOMARK Display testing.”
The following section gathers key elements of our exhaustive tests and analyses performed in DXOMARK laboratories. Detailed performance evaluations in the form of reports are available upon request. Do not hesitate to contact us.
Readability
120
Samsung Galaxy S24 Ultra
Samsung Galaxy S24 Ultra
How Display Readability score is composed
Readability evaluates how easily and comfortably users can read still content (photos & web) on the display under different real-life conditions. DXOMARK uses its Display Bench to recreate ambient light conditions ranging from total darkness to bright sunlight. In addition to laboratory tests, perceptual analysis is also performed in real-life environments.
Luminance under various lighting conditions
Contrast under various lighting conditions
In low-light conditions, the OnePlus 10 Pro’s brightness is slightly low. Of note is that the device changes its brightness levels depending on the time of day. DXOMARK performs its object measurements under daytime conditions, and the 10 Pro’s brightness is correspondingly quite high. However, we perform our perceptual tests under midnight conditions (0 lux), and as shown in the illustration below, the 10 Pro is indeed dimmer than its competitors.
Readability in a low-light (0 lux) environment
Left to right: OnePlus 10 Pro, OnePlus 9 Pro, Oppo Find X5 Pro, Google Pixel 6 Pro
(Photos for illustration only)
The device is readable in indoor conditions.
Readability in an indoor (1000 lux) environment
Left to right: OnePlus 10 Pro, OnePlus 9 Pro, Oppo Find X5 Pro, Google Pixel 6 Pro
(Photos for illustration only)
The OnePlus 10 Pro lacks brightness outdoors, but its brightness level outdoors in shade is better than that of its predecessor, the OnePlus 9 Pro, as can be seen in the illustration below.
Readability in an outdoor (20 000 lux) environment
Left to right: OnePlus 10 Pro, OnePlus 9 Pro, Oppo Find X5 Pro, Google Pixel 6 Pro
(Photos for illustration only)
However, in contrast to the OnePlus 9 Pro in the illustration below, content on the 10 Pro loses a lot of detail in darker areas when viewed under sunlight.
Readability in a sunlit (>90 0000 lux) environment
Left to right: OnePlus 10 Pro, OnePlus 9 Pro, Oppo Find X5 Pro, Google Pixel 6 Pro
(Photos for illustration only)
The OnePlus 10 Pro also lacks brightness when viewed at an angle, as shown below.
Readability at a 45° angle
Left to right: OnePlus 10 Pro, OnePlus 9 Pro, Oppo Find X5 Pro, Google Pixel 6 Pro
(Photos for illustration only)
The OnePlus 10 Pro has excellent brightness uniformity.
Luminance uniformity measurement
This graph shows the uniformity of the display using a 20% gray pattern. The more visible the green color, the more uniform the display.
Color
157
Google Pixel 8
Google Pixel 8
How Display Color score is composed
The color attribute evaluates the capacity of the device to accurately reproduce colors. The measurements taken are for fidelity, white point color, and gamut coverage. We perform color evaluations for different lighting conditions to see how well the device can manage color in the surrounding environment. Colors are measured using a spectrophotometer in a controlled lighting environment. Perceptual analysis of color rendering is against the reference pattern displayed on a calibrated professional monitor.
Color rendering was a real strength for the OnePlus 10 Pro, with the device taking top marks in our database to date, thanks to its good color fidelity and excellent color uniformity. It does not change its white point in response to the ambient lighting.
White point under D65 illuminant at 1000 lux
In both indoor and outdoor conditions, the OnePlus 10 Pro’s rendering is very pleasant, especially when viewing content indoors.
Color rendering indoors (1000 lux)
Clockwise from top left: OnePlus 10 Pro, OnePlus 9 Pro, Google Pixel 6 Pro, Oppo Find X5 Pro
(Photos for illustration only)
Outdoors, the color rendering is affected a bit by the device’s lack of brightness, but colors remain faithful.
Color rendering in sunlight (>90 0000 lux)
Clockwise from top left: OnePlus 10 Pro, OnePlus 9 Pro, Google Pixel 6 Pro, Oppo Find X5 Pro
(Photos for illustration only)
The OnePlus 10 Pro has particularly good color fidelity in the DCI-P3 color space.
Color fidelity measurements
OnePlus 10 Pro, color fidelity at 1000 lux in the sRGB color space

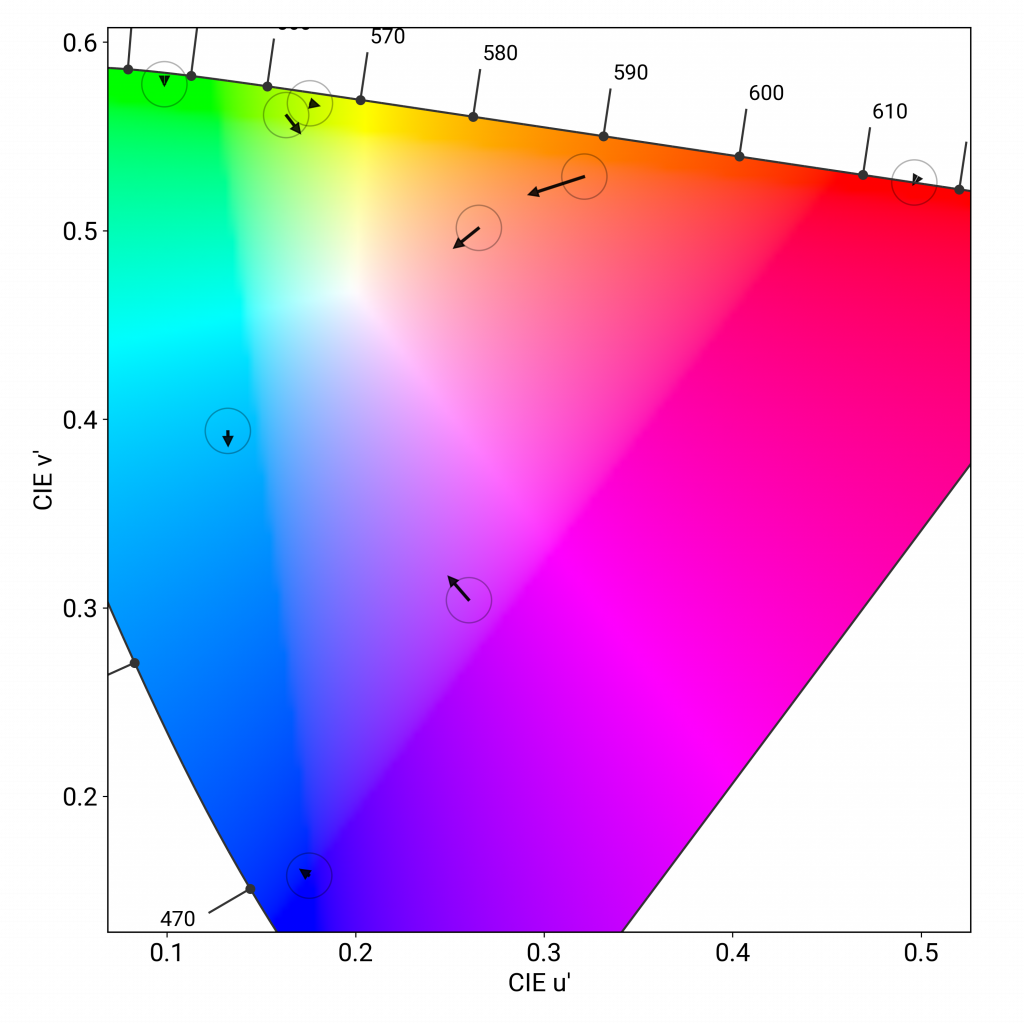

OnePlus 10 Pro, color fidelity at 1000 lux in the DCI-P3 color space
Each arrow represents the color difference between a target color pattern (base of the arrow) and its actual measurement (tip of the arrow). The longer the arrow, the more visible the color difference is. If the arrow stays within the circle, the color difference will be visible only to trained eyes.
Held on angle, the OnePlus 10 Pro shifts slightly towards blue, but the shift is not very noticeable.
Color behavior on angle
This graph shows the color shift when the screen is at an angle. Each dot represents a measurement at a particular angle. Dots inside the inner circle exhibit no color shift in angle; those between the inner and outer circle have shifts that only trained experts will see; but those falling outside the outer circle are noticeable.
Color shift on angle
Left to right: OnePlus 10 Pro, OnePlus 9 Pro, Oppo Find X5 Pro, Google Pixel 6 Pro
(Photos for illustration only)
Video
104
Samsung Galaxy Z Fold6
Samsung Galaxy Z Fold6
How Display Video score is composed
Our video attribute evaluates the Standard Dynamic Range (SDR) and High Dynamic Range (HDR10) video handling of each device in indoor and low-light conditions. We measure tone mapping, color gamut, brightness and contrast of the display. We perform perceptual analysis against our professional reference monitor (Sony BVM-HX310) to ensure that the rendering respects the artistic intent.
The OnePlus 10 Pro put in a weak performance in our Video attribute testing, coming in far behind the category leaders. HDR10 videos played on the device lack brightness and are too contrasted; moreover, dark tones are barely visible, making for a sub-optimal viewing experience.
Video brightness at 10% APL in the dark ( < 5 lux)
Video rendering in a low-light (0 lux) environment
Clockwise from top left: OnePlus 10 Pro, OnePlus 9 Pro, Google Pixel 6 Pro, Oppo Find X5 Pro
(Photos for illustration only)
Video colors are oversaturated and show an orange cast; on a positive note, however, the cast does not affect skin tone rendering.
Video color rendering in a low-light (0 lux) environment
Clockwise from top left: OnePlus 10 Pro, OnePlus 9 Pro, Google Pixel 6 Pro, Oppo Find X5 Pro
(Photos for illustration only)
Gamut coverage for video content
Primary colors are measured both in HDR10 and SDR. The extracted color gamut shows the extent of the color area that the device can render. To respect the artistic intent, the measured gamut should match the master color space of each video.
How Display Motion score is composed
The motion attribute evaluates the handling of dynamic contents. Frame drops, motion blur, and playback artifacts are scrutinized using games and videos.
The OnePlus 10 Pro shows a few frame mismatches for 30 fps and 60 fps content, but when playing video games, no frame mismatches are visible. Motion blur is well managed. The device shows a delay before resuming video playback.
Video frame drops
OnePlus 10 Pro 30 fps content
These long exposure photos present the number of frame irregularities in a 30-second video. A good performance shows a regular pattern (either a flat gray image or a pull-down pattern).
Touch
135
Google Pixel 7 Pro
Google Pixel 7 Pro
How Display Touch score is composed
To evaluate touch, DXOMARK uses a touch robot and a high-speed camera to play and record a set of scenarios for smoothness, accuracy, and response-time evaluation.
The OnePlus 10 Pro is accurate when zooming in the gallery app. The screen reacts accurately when playing video games; however, corners are not responsive to touch. The device is smooth when browsing the web, when playing video games, and in the gallery app, but lacks smoothness when using other apps, such as Instagram.
Average Touch Response Time OnePlus 10 Pro
This response time test precisely evaluates the time elapsed between a single touch of the robot on the screen and the displayed action. This test is applied to activities that require high reactivity, such as gaming.
How Display Artifacts score is composed
Evaluating artifacts means checking for the performance, image rendering and motion flaws that can affect the end-user experience. DXOMARK measures precisely the device’s reflectance and the presence of flicker, and assesses the impact of residual aliasing when playing video games, among other characteristics.
Average Reflectance (SCI) OnePlus 10 Pro
SCI stands for Specular Component Included, which measures both the diffuse reflection and the specular reflection. Reflection from a simple glass sheet is around 4%, while it reaches about 6% for a plastic sheet. Although smartphones’ first surface is made of glass, their total reflection (without coating) is usually around 5% due to multiple reflections created by the complex optical stack.
Reflectance (SCI)
Measurements above show the reflection of the device within the visible spectrum range (400 nm to 700 nm). It includes both diffuse and specular reflection.
Sensitive people will notice some flicker on the OnePlus 10 Pro. (For more information, see our flicker article.)
PWM Frequency OnePlus 10 Pro
360 Hz
Bad
Good
Bad
Great
Displays flicker for 2 main reasons: refresh rate and Pulse Width Modulation. Pulse width modulation is a modulation technique that generates variable-width pulses to represent the amplitude of an analog input signal. This measurement is important for comfort because flickering at low frequencies can be perceived by some individuals, and in the most extreme cases, can induce seizures. Some experiments show that discomfort can appear at a higher frequency. A high PWM frequency (>1500 Hz) tends to be less disturbing for users.
Temporal Light Modulation
This graph represents the frequencies of lighting variation; the highest peak gives the main flicker frequency. The combination of a low frequency and a high peak is susceptible to inducing eye fatigue. Displays flicker for 2 main reasons: refresh rate and Pulse Width Modulation. This measurement is important for comfort because flickering at low frequencies can be perceived by some individuals, and in the most extreme cases, can induce seizures. Some experiments show that discomfort can appear at a higher frequency. A high PWM frequency (>1500 Hz) tends to be safer for users.
OnePlus 10 Pro, judder at 24 fps
OnePlus 10 Pro, judder at 30 fps
OnePlus 10 Pro, judder at 60 fps
The OnePlus 10 Pro manages judder well at 24 fps, with only occasional frame mismatches; no judder is visible at 30 fps and 60 fps. The device does not respond to ghost touches, but aliasing is visible when playing video games. That said, with no visible frame drops, the OnePlus 10 Pro provides a smooth and very pleasant gaming experience.
Aliasing (closeup)
OnePlus 10 Pro, aliasing
(Photos for illustration only)
