Smartphones  >  OnePlus 11  >  Display Test Results
OnePlus 11
premium ?

OnePlus 11 Display test

OTHER AVAILABLE TESTS FOR THIS DEVICE

We put the OnePlus 11 through our rigorous DXOMARK Display test suite to measure its performance across six criteria. In this test results, we will break down how it fared in a variety of tests and several common use cases.

Overview

Key display specifications:

  • 6.7 inches OLED LTPO, (~90.5% screen-to-body ratio)
  • Dimensions: 163.1 x 74.1 x 8.5 mm (6.42 x 2.92 x 0.33 inches)
  • Resolution: 1440 x 3216 pixels, (~525 ppi density)
  • Aspect ratio: 20.1:9
  • Refresh rate: 120 Hz

Scoring

Sub-scores and attributes included in the calculations of the global score.

OnePlus 11 OnePlus 11
129
display
121

163

155

164

101

162

153

159

147

170

131

163

Pros

  • Good color fidelity on display
  • Screen is accurate, smooth, and reactive when touched
  • Good frame-drop performance

Cons

  • Lack of screen brightness under sunlight
  • Low brightness and lack of contrast on dark content when watching videos in low light
  • Blue light filter strongly affects screen’s colors and readability

The OnePlus 11’s display performance was little changed from the company’s previous-generation device, the OnePlus 10 Pro. Both achieved the same overall score, even though the OnePlus 11 is in the Premium segment, compared with the OnePlus 10 Pro’s Ultra-Premium standing.

The OnePlus 11’s display performance makes the device suitable for gaming thanks to the screen’s responsive touch, smoothness, and 120 Hz refresh rate. The display didn’t show any frame mismatches in testing, however some images displayed aliasing when gaming.

The device’s display was quite readable in indoor conditions, but it lacked brightness when lighting conditions were more extreme, such as in dark ambient lighting or when outdoors, especially under sunlight.

Colors were rendered correctly on the OnePlus 11’s screen, but even though color fidelity was good, the colors always appeared very saturated in all lighting conditions.

Watching videos on the OnePlus 11 was challenging because the brightness was too low and the contrast was not well-rendered, making the darkest shades of the content nearly invisible.

Test summary

About DXOMARK Display tests: For scoring and analysis in our smartphone and other display reviews, DXOMARK engineers perform a variety of objective and perceptual tests under controlled lab and real-life conditions. Note that we evaluate display attributes using only the device’s built-in display hardware and its still image (gallery) and video apps at their default settings. (For in-depth information about how we evaluate smartphone and other displays, check out our articles, “How DXOMARK tests display quality” and “A closer look at DXOMARK Display testing.

The following section gathers key elements of our exhaustive tests and analyses performed in DXOMARK laboratories. Detailed performance evaluations under the form of reports are available upon request. Do not hesitate to contact us.

Readability

121

OnePlus 11

163

Samsung Galaxy S24+
How Display Readability score is composed

Readability evaluates how easily and comfortably users can read still content (photos & web) on the display under different real-life conditions. DXOMARK uses its Display Bench to recreate ambient light conditions ranging from total darkness to bright sunlight. In addition to laboratory tests, perceptual analysis is also made in real-life environments.

Luminance under various lighting conditions
Contrast under various lighting conditions


Readability in an indoor (1000 lux) environment
From left: OnePlus 11, OnePlus 10 Pro, Samsung Galaxy S23+
(Photos for illustration only)


Readability in a sunlight (>90 000 lux) environment
From left: OnePlus 11, OnePlus 10 Pro, Samsung Galaxy S23+
(Photos for illustration only)


Luminance uniformity measurement
This graph shows the uniformity of the display with a 20% gray pattern. The more visible the green color, the more uniform the display.

Color

155

OnePlus 11

164

Google Pixel 8 Pro
How Display Color score is composed

The color attribute evaluates the capacity of the device to accurately reproduce colors. The measurements taken are for fidelity, white point color, and gamut coverage. We perform color evaluations for different lighting conditions to see how well the device can manage color in the surrounding environment. Colors are measured using a spectrophotometer in a controlled lighting environment. Perceptual analysis of color rendering is against the reference pattern displayed on a calibrated professional monitor.

White point under D65 illuminant at 1000 lux


Color rendering indoors (1000 lux)
Clockwise from top left: OnePlus 11, OnePlus 10 Pro, Samsung Galaxy S23+
(Photos for illustration only)


Color rendering in sunlight (>90 000 lux)
Clockwise from top left: OnePlus 11, OnePlus 10 Pro, Samsung Galaxy S23+
(Photos for illustration only)
Color fidelity measurements

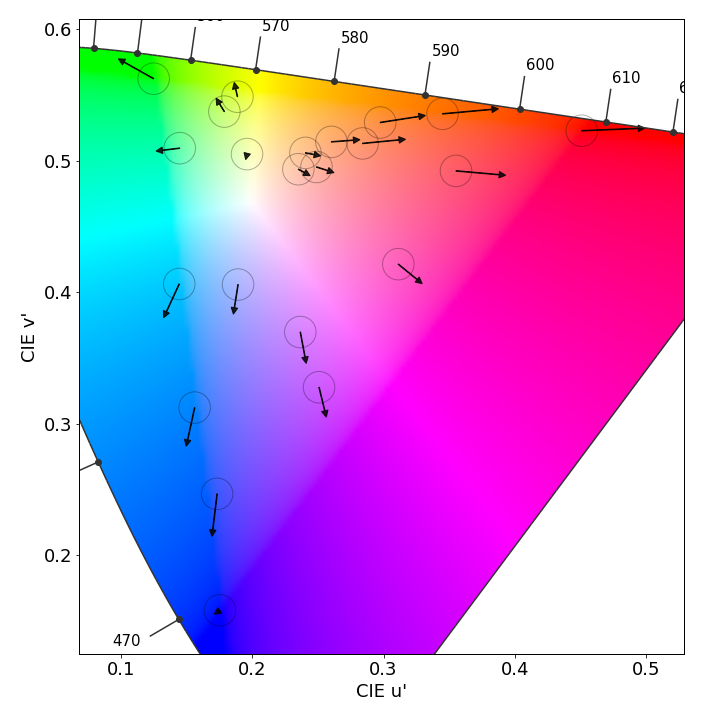

OnePlus 11, color fidelity at 1000 lux in the sRGB color space
OnePlus 11, color fidelity at 1000 lux in the Display-P3 color space
Each arrow represents the color difference between a target color pattern (base of the arrow) and its actual measurement (tip of the arrow). The longer the arrow, the more visible the color difference is. If the arrow stays within the circle, the color difference will be visible only to trained eyes.
Color behavior on angle
This graph shows the color shift when the screen is at an angle. Each dot represents a measurement at a particular angle. Dots inside the inner circle exhibit no color shift in angle; those between the inner and outer circle have shifts that only trained experts will see; but those falling outside the outer circle are noticeable.

Video

101

OnePlus 11

162

Samsung Galaxy S23 (Snapdragon)
How Display Video score is composed

Our video attribute evaluates the Standard Dynamic Range (SDR) and High Dynamic Range (HDR10) video handling of each device in indoor and low-light conditions. We measure tone mapping, color gamut, brightness and contrast of the display. We perform perceptual analysis against our professional reference monitor (Sony BVM-HX310) to ensure that the rendering respects the artistic intent.

Video brightness at 10% APL in the dark ( < 5 lux)


Video rendering in a low-light (0 lux) environment
Clockwise from top left: OnePlus 11, OnePlus 10 Pro, Samsung Galaxy S23+
(Photos for illustration only)

Clockwise from top left: OnePlus 11, OnePlus 10 Pro, Samsung Galaxy S23+
(Photos for illustration only)
Gamut coverage for video content
HDR10 Gamut coverage
SDR Gamut coverage
The primary colors are measured both in HDR10 and SDR. The extracted color gamut shows the extent of the color area that the device can render. To respect the artistic intent, the measured gamut should match the master color space of each video.

Motion

153

OnePlus 11

159

Honor Magic6 Pro
How Display Motion score is composed

The motion attribute evaluates the handling of dynamic contents. Frame drops, motion blur, and playback artifacts are scrutinized using games and videos.


Video frame drops
30 fps content
60 fps content
These long exposure photos present the number of frame irregularities in a 30-second video. A good performance shows a regular pattern (either a flat gray image or a pull-down pattern).

Touch

147

OnePlus 11

170

Samsung Galaxy S24+
How Display Touch score is composed

To evaluate touch, DXOMARK uses a touch robot and a high-speed camera to play and record a set of scenarios for smoothness, accuracy and response-time evaluation.

Average Touch Response Time OnePlus 11
79 ms
Fast
Good
Bad
Slow
This response time test evaluates precisely the time elapsed between a single touch of the robot on the screen and the displayed action. This test is applied to activities that require a high reactivity, such as gaming.

Artifacts

131

OnePlus 11

163

OnePlus Open
How Display Artifacts score is composed

Evaluating artifacts means checking for the performance, image rendering and motion flaws that can affect the end-user experience. DXOMARK measures precisely the device’s reflectance and the presence of flicker, and assesses the impact of residual aliasing when playing video games, among other characteristics.

Average Reflectance (SCI) OnePlus 11
4.6 %
Low
Good
Bad
High
Reflectance (SCI)
Measurements above show the reflection of the device within the visible spectrum range (400 nm to 700 nm). It includes both diffuse and specular reflection.
Flicker Frequency OnePlus 11
360 Hz
Bad
Good
Bad
Great
Temporal Light Modulation
This graph represents the frequencies of lighting variation; the highest peak gives the main flicker frequency.
Aliasing (closeup)
OnePlus 11
(Photos for illustration only)
