We put the Samsung Galaxy Z Flip3 5G’s main unfolded screen through our rigorous DXOMARK Display test suite to measure its performance across six criteria. In this test results, we will break down how it fared in a variety of tests and several common use cases.
Overview
Key display specifications:
- 6.7 inches OLED, (~87.4% screen-to-body ratio)
- Dimensions: 86.4 x 72.2 x 15.9mm to 7.1 mm (folded); 72.2 x 166.0 x 6.9mm (unfolded)
- Resolution: 1080 x 2640 pixels, (~425 ppi density)
- Aspect ratio: 22:9
- Refresh rate: 120 Hz
Samsung Galaxy Z Flip3 5G
89
display
74
Apple iPhone 13 Pro Max
Best: Apple iPhone 13 Pro Max (76)
82
Sony Xperia 5 IV
Best: Sony Xperia 5 IV (92)
89
Samsung Galaxy S22 Ultra (Snapdragon)
Best: Samsung Galaxy S22 Ultra (Snapdragon) (91)
86
Huawei P40 Pro
Best: Huawei P40 Pro (87)
66
OnePlus 9
Best: OnePlus 9 (85)
67
Apple iPhone 13 Pro Max
Best: Apple iPhone 13 Pro Max (86)
Position in Global Ranking
23
rd
1. Apple iPhone 13 Pro Max
99
6. Samsung Galaxy S22+ (Exynos)
93
6. Samsung Galaxy S22 Ultra (Snapdragon)
93
6. Samsung Galaxy S22 Ultra (Exynos)
93
11. Samsung Galaxy S22 (Snapdragon)
92
11. Samsung Galaxy S22 (Exynos)
92
13. Samsung Galaxy S21 Ultra 5G (Exynos)
91
16. Samsung Galaxy S21 FE 5G (Snapdragon)
90
16. Samsung Galaxy Note20 Ultra 5G (Snapdragon)
90
23. Samsung Galaxy Z Fold3 5G
89
23. Samsung Galaxy Z Flip3 5G
89
23. Samsung Galaxy Note20 Ultra 5G (Exynos)
89
31. Apple iPhone 12 Pro Max
88
31. Vivo X70 Pro (MediaTek)
88
31. Vivo X60 Pro 5G (Snapdragon)
88
39. Samsung Galaxy S20 Ultra 5G
87
48. Apple iPhone SE (2022)
86
48. Oppo Reno6 Pro 5G (Snapdragon)
86
58. Apple iPhone 11 Pro Max
84
71. Samsung Galaxy A52s 5G
79
71. Samsung Galaxy A52 5G
79
71. Xiaomi Redmi K50 Gaming
79
81. Samsung Galaxy A53 5G
77
85. Microsoft Surface Duo
74
95. Xiaomi Black Shark 3 Pro
61
97. Lenovo Legion Phone 2 Pro
53
Position in Ultra-Premium Ranking
17
th
1. Apple iPhone 13 Pro Max
99
6. Samsung Galaxy S22+ (Exynos)
93
6. Samsung Galaxy S22 Ultra (Snapdragon)
93
6. Samsung Galaxy S22 Ultra (Exynos)
93
10. Samsung Galaxy S21 Ultra 5G (Exynos)
91
13. Samsung Galaxy Note20 Ultra 5G (Snapdragon)
90
17. Samsung Galaxy Z Fold3 5G
89
17. Samsung Galaxy Z Flip3 5G
89
17. Samsung Galaxy Note20 Ultra 5G (Exynos)
89
22. Apple iPhone 12 Pro Max
88
26. Samsung Galaxy S20 Ultra 5G
87
32. Apple iPhone 11 Pro Max
84
35. Microsoft Surface Duo
74
38. Xiaomi Black Shark 3 Pro
61
Pros
- Well-balanced brightness and accurate colors, providing a satisfying video experience in HDR10
- Smoothness when browsing the web and using the gallery app
- Pleasant gaming experience
Cons
- Unfaithful colors under sunlight
- Strong iridescence when using the device with polarized glasses
- Visible screen fold in most situations
The Samsung Galaxy Z Flip3 5G actually comes with two screens– a small external screen and of course, the main screen. The obvious novelty of the device is that it goes from a compact format phone with a screen that flips open into a full-size 6.7-inch smartphone. Despite the noticeable crease on the main display where the screen unfolds, the display’s performance was overall quite good, except when in sunlight, and the device provided a good experience in several use cases.
The Galaxy Z Flip3 5G scored very near the top in the video attribute because of its good brightness, contrast, and colors, making it very good for watching HDR10 videos.
It also scored highly in motion because of its smoothness, which provided a good experience when browsing the web or playing video games.
Test summary
About DXOMARK Display tests: For scoring and analysis in our smartphone and other display reviews, DXOMARK engineers perform a variety of objective and perceptual tests under controlled lab and real-life conditions. Note that we evaluate display attributes using only the device’s built-in display hardware and its still image (gallery) and video apps at their default settings. (For in-depth information about how we evaluate smartphone and other displays, check out our articles, “How DXOMARK tests display quality” and “A closer look at DXOMARK Display testing.”
The following section gathers key elements of our exhaustive tests and analyses performed in DXOMARK laboratories. Detailed performance evaluations under the form of reports are available upon request. Do not hesitate to contact us.
Readability
74
Samsung Galaxy Z Flip3 5G
76
Apple iPhone 13 Pro Max
Apple iPhone 13 Pro Max
How Display Readability score is composed
Readability evaluates how easily and comfortably users can read still content (photos & web) on the display under different real-life conditions. DXOMARK uses its Display Bench to recreate ambient light conditions ranging from total darkness to bright sunlight. In addition to laboratory tests, perceptual analysis is also made in real-life environments.
Luminance under various lighting conditions
Contrast under various lighting conditions
Readability in a sunlight (>90 0000 lux) environment
From left to right: Samsung Galaxy Z Flip3 5G, Samsung Galaxy S21 Ultra 5G (Snapdragon), Sony Xperia 1 III, Apple iPhone 13
(Photos for illustration only)
Readability at a 45° angle
From left to right: Samsung Galaxy Z Flip3 5G, Samsung Galaxy S21 Ultra 5G (Snapdragon), Sony Xperia 1 III, Apple iPhone 13
(Photos for illustration only)
Luminance uniformity measurement
This graph shows the uniformity of the display with a 20% gray pattern. The more visible the green color, the more uniform the display.
Color
82
Samsung Galaxy Z Flip3 5G
92
Sony Xperia 5 IV
Sony Xperia 5 IV
How Display Color score is composed
The color attribute evaluates the capacity of the device to accurately reproduce colors. The measurements taken are for fidelity, white point color, and gamut coverage. We perform color evaluations for different lighting conditions to see how well the device can manage color in the surrounding environment. Colors are measured using a spectrophotometer in a controlled lighting environment. Perceptual analysis of color rendering is against the reference pattern displayed on a calibrated professional monitor.
White point under D65 illuminant at 1000 lux

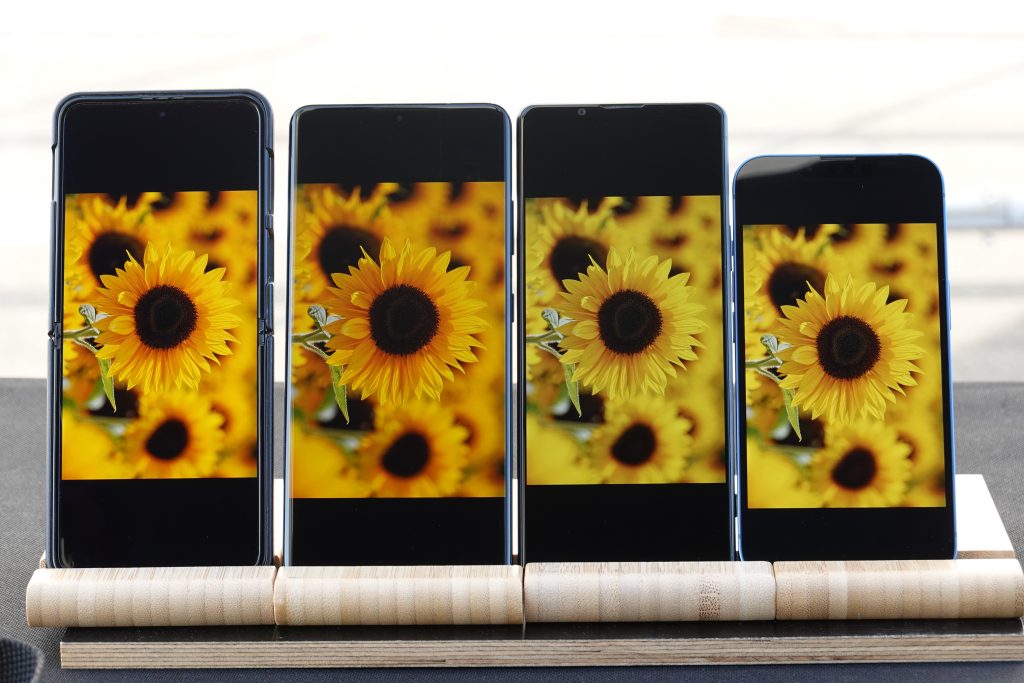

Color rendering outdoors (20 000 lux)
From left to right: Samsung Galaxy Z Flip3 5G, Samsung Galaxy S21 Ultra 5G (Snapdragon), Sony Xperia 1 III, Apple iPhone 13
(Photos for illustration only)
Color fidelity measurements

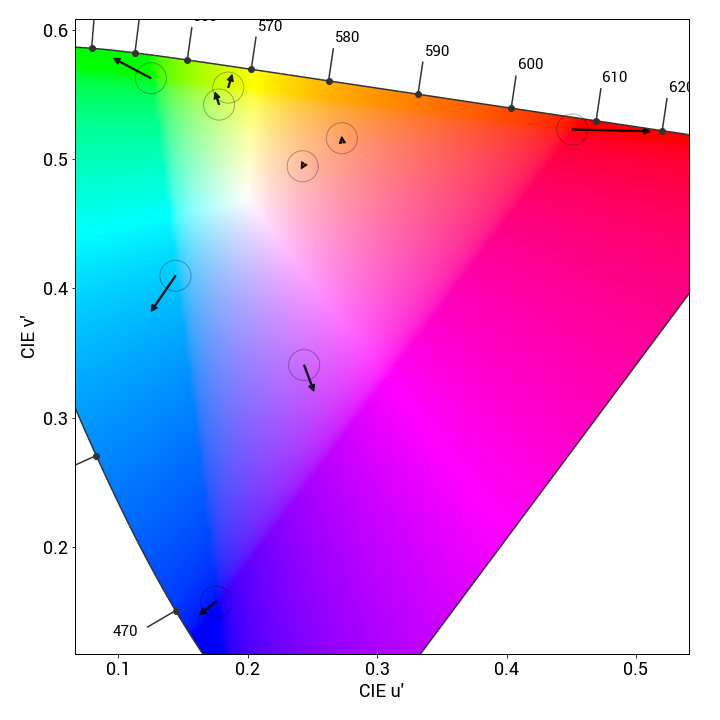

Samsung Galaxy Z Flip3 5G, color fidelity at 1000 lux in the sRGB color space
Samsung Galaxy Z Flip3 5G, color fidelity at 1000 lux in the DCI-P3 color space
Each arrow represents the color difference between a target color pattern (base of the arrow) and its actual measurement (tip of the arrow). The longer the arrow, the more visible the color difference is. If the arrow stays within the circle, the color difference will be visible only to trained eyes.
Color behavior on angle
This graph shows the color shift when the screen is at an angle. Each dot represents a measurement at a particular angle. Dots inside the inner circle exhibit no color shift in angle; those between the inner and outer circle have shifts that only trained experts will see; but those falling outside the outer circle are noticeable.
Video
89
Samsung Galaxy Z Flip3 5G
91
Samsung Galaxy S22 Ultra (Snapdragon)
Samsung Galaxy S22 Ultra (Snapdragon)
How Display Video score is composed
Our video attribute evaluates the Standard Dynamic Range (SDR) and High Dynamic Range (HDR10) video handling of each device in indoor and low-light conditions. We measure tone mapping, color gamut, brightness and contrast of the display. We perform perceptual analysis against our professional reference monitor (Sony BVM-HX310) to ensure that the rendering respects the artistic intent.
Video brightness at 10% APL in the dark ( < 5 lux)

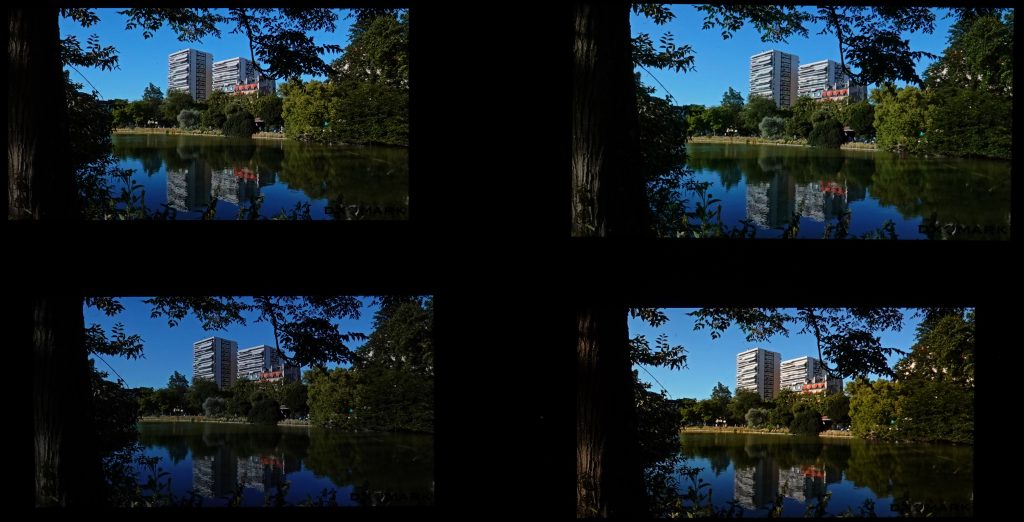

Video rendering in a low-light (0 lux) environment
Clockwise from top left: Samsung Galaxy Z Flip3 5G, Samsung Galaxy S21 Ultra 5G (Snapdragon), Apple iPhone 13, Sony Xperia 1 III
(Photos for illustration only)
Clockwise from top left: Samsung Galaxy Z Flip3 5G, Samsung Galaxy S21 Ultra 5G (Snapdragon), Apple iPhone 13, Sony Xperia 1 III
(Photos for illustration only)
Gamut coverage for video content
The primary colors are measured both in HDR10 and SDR. The extracted color gamut shows the extent of the color area that the device can render. To respect the artistic intent, the measured gamut should match the master color space of each video.
Motion
86
Samsung Galaxy Z Flip3 5G
87
Huawei P40 Pro
Huawei P40 Pro
How Display Motion score is composed
The motion attribute evaluates the handling of dynamic contents. Frame drops, motion blur, and playback artifacts are scrutinized using games and videos.

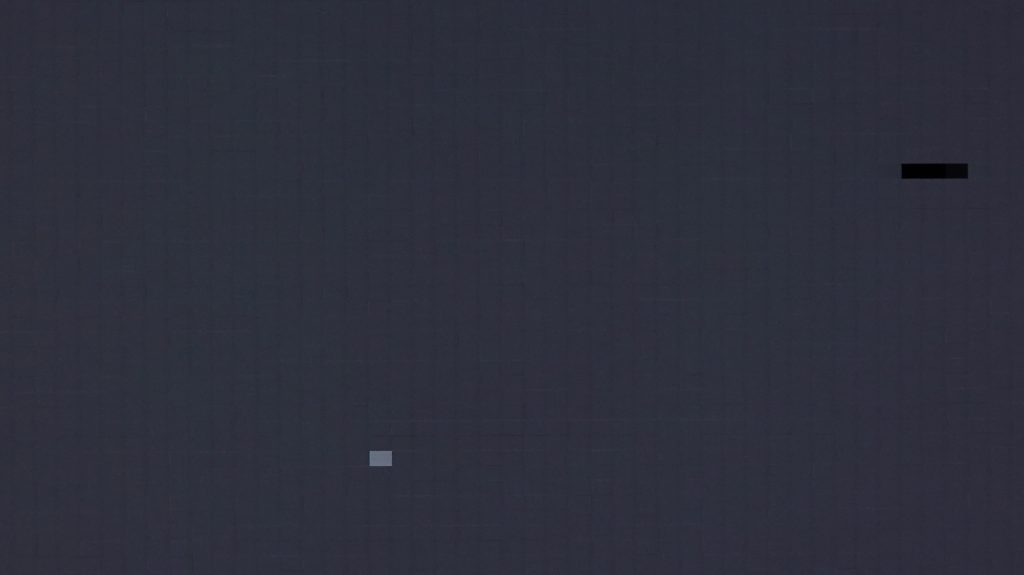

Video frame drops
These long exposure photos present the number of frame irregularities in a 30-second video. A good performance shows a regular pattern (either a flat gray image or a pull-down pattern).
Touch
66
Samsung Galaxy Z Flip3 5G
85
OnePlus 9
OnePlus 9
How Display Touch score is composed
To evaluate touch, DXOMARK uses a touch robot and a high-speed camera to play and record a set of scenarios for smoothness, accuracy and response-time evaluation.
Average Touch Response Time Samsung Galaxy Z Flip3 5G
This response time test precisely evaluates the time elapsed between a single touch of the robot on the screen and the displayed action. This test is applied to activities that require high reactivity, such as gaming.
Artifacts
67
Samsung Galaxy Z Flip3 5G
86
Apple iPhone 13 Pro Max
Apple iPhone 13 Pro Max
How Display Artifacts score is composed
Evaluating artifacts means checking for the performance, image rendering and motion flaws that can affect the end-user experience. DXOMARK measures precisely the device’s reflectance and the presence of flicker, and assesses the impact of residual aliasing when playing video games, among other characteristics.
Average Reflectance (SCI) Samsung Galaxy Z Flip3 5G
SCI stands for Specular Component Included, which measures both the diffuse reflection and the specular reflection. Reflection from a simple glass sheet is around 4%, while it reaches about 6% for a plastic sheet. Although smartphones’ first surface is made of glass, their total reflection (without coating) is usually around 5% due to multiple reflections created by the complex optical stack.
Reflectance (SCI)
Measurements above show the reflection of the device within the visible spectrum range (400 nm to 700 nm). It includes both diffuse and specular reflection.
PWM Frequency Samsung Galaxy Z Flip3 5G
240 Hz
Bad
Good
Bad
Great
Displays flicker for 2 main reasons: refresh rate and Pulse Width Modulation. Pulse width modulation is a modulation technique that generates variable-width pulses to represent the amplitude of an analog input signal. This measurement is important for comfort because flickering at low frequencies can be perceived by some individuals, and in the most extreme cases, can induce seizures. Some experiments show that discomfort can appear at a higher frequency. A high PWM frequency (>1500 Hz) tends to be less disturbing for users.
Temporal Light Modulation
This graph represents the frequencies of lighting variation; the highest peak gives the main flicker frequency. The combination of a low frequency and a high peak is susceptible to inducing eye fatigue. Displays flicker for 2 main reasons: refresh rate and Pulse Width Modulation. This measurement is important for comfort because flickering at low frequencies can be perceived by some individuals, and in the most extreme cases, can induce seizures. Some experiments show that discomfort can appear at a higher frequency. A high PWM frequency (>1500 Hz) tends to be safer for users.

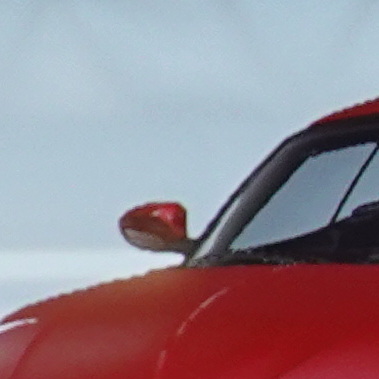

Aliasing (closeup)
Samsung Galaxy Z Flip3 5G
(Photos for illustration only)
Samsung Galaxy Z Flip3 5G – Crop1
Samsung Galaxy Z Flip3 5G – Crop 2
Samsung Galaxy Z Flip3 5G – Crop3
