Smartphones  >  Sony Xperia 5 V  >  Display Test Results
Sony Xperia 5 V
Ultra-Premium ?

Sony Xperia 5 V Display test

This device has been retested in the latest version of our protocol. Overall, sub-scores and attributes are up to date. For detailed information, check the What’s New article
OTHER AVAILABLE TESTS FOR THIS DEVICE

We put the Sony Xperia 5 V through our rigorous DXOMARK Display test suite to measure its performance across six criteria. In this summary of test results, we will break down how it fared in a variety of tests and several common use cases.

Overview

Key display specifications:

  • 6.1 inches OLED (~82.2% screen-to-body ratio)
  • Dimensions: 154.0 x 68.0 x 8.6 mm (6.06 x 2.68 x 0.34 inches)
  • Resolution: 1080 x 2520 pixels (~449 ppi density)
  • Aspect ratio: 21:9
  • Refresh rate: 120 Hz

Scoring

Sub-scores and attributes included in the calculations of the global score.

Sony Xperia 5 V Sony Xperia 5 V
127
display
113

164

159

165

121

165

127

164

Pros

  • Well-rendered colors in all tested lighting conditions
  • Smooth interactions when browsing, when in the gallery app, and when playing video games.
  • Very rare frame mismatches when watching videos

Cons

  • Lack of brightness under sunlight
  • Dissatisfying video performance, especially in terms of contrast
  • Rainbow effect visible at an angle

The Sony Xperia 5 V has well-suited saturation and color rendering. But the main downside is the presence of colored stripes when the device is viewed at an angle (rainbow effect). Although the variation in hue is not so important, the alternating pattern is really visible. The device is  readable in indoor conditions, but  the screen lacks brightness in outdoor conditions, especially under sunlight. In dark conditions, the device’s brightness is comfortable when the blue light filter is activated.

The Xperia 5 V’s performance in video playback was dissatisfying in terms of contrast and brightness, and darker tones are generally difficult to discern in HDR10 videos.

The Xperia 5 V, which is at the same price point as its predecessor,  achieved  the same score as the  Xperia 5 IV. The  newer model showed no overall improvement, and the maximum screen brightness was actually higher on the Xperia 5 IV.

Test summary

About DXOMARK Display tests: For scoring and analysis in our smartphone and other display reviews, DXOMARK engineers perform a variety of objective and perceptual tests under controlled lab and real-life conditions. Note that we evaluate display attributes using only the device’s built-in display hardware and its still image (gallery) and video apps at their default settings. (For in-depth information about how we evaluate smartphone and other displays, check out our articles, “How DXOMARK tests display quality” and “A closer look at DXOMARK Display testing.

The following section gathers key elements of our exhaustive tests and analyses performed in DXOMARK laboratories. Detailed performance evaluations under the form of reports are available upon request. Do not hesitate to contact us.

Readability

113

Sony Xperia 5 V

164

Samsung Galaxy S24 Ultra
How Display Readability score is composed

Readability evaluates how easily and comfortably users can read still content (photos & web) on the display under different real-life conditions. DXOMARK uses its Display Bench to recreate ambient light conditions ranging from total darkness to bright sunlight. In addition to laboratory tests, perceptual analysis is also made in real-life environments.

Luminance under various lighting conditions
Contrast under various lighting conditions


Readability in an indoor (1000 lux) environment
From left: Sony Xperia 5 V, Sony Xperia 5 IV, Samsung Galaxy S23, Apple iPhone 14
(Photos for illustration only)


Readability in an outdoor (20 000 lux) environment
From left: Sony Xperia 5 V, Sony Xperia 5 IV, Samsung Galaxy S23, Apple iPhone 14
(Photos for illustration only)


Readability in a sunlight (>90 000 lux) environment
From left: Sony Xperia 5 V, Sony Xperia 5 IV, Samsung Galaxy S23, Apple iPhone 14
(Photos for illustration only)

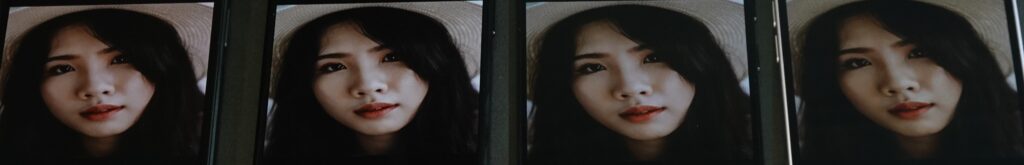

Readability at a 45° angle

From left: Sony Xperia 5 V, Sony Xperia 5 IV, Samsung Galaxy S23, Apple iPhone 14
(Photos for illustration only)

Luminance uniformity measurement
This graph shows the uniformity of the display with a 20% gray pattern. The more visible the green color, the more uniform the display.

Color

159

Sony Xperia 5 V

165

Google Pixel 8
How Display Color score is composed

The color attribute evaluates the capacity of the device to accurately reproduce colors. The measurements taken are for fidelity, white point color, and gamut coverage. We perform color evaluations for different lighting conditions to see how well the device can manage color in the surrounding environment. Colors are measured using a spectrophotometer in a controlled lighting environment. Perceptual analysis of color rendering is against the reference pattern displayed on a calibrated professional monitor.

White point under D65 illuminant at 1000 lux

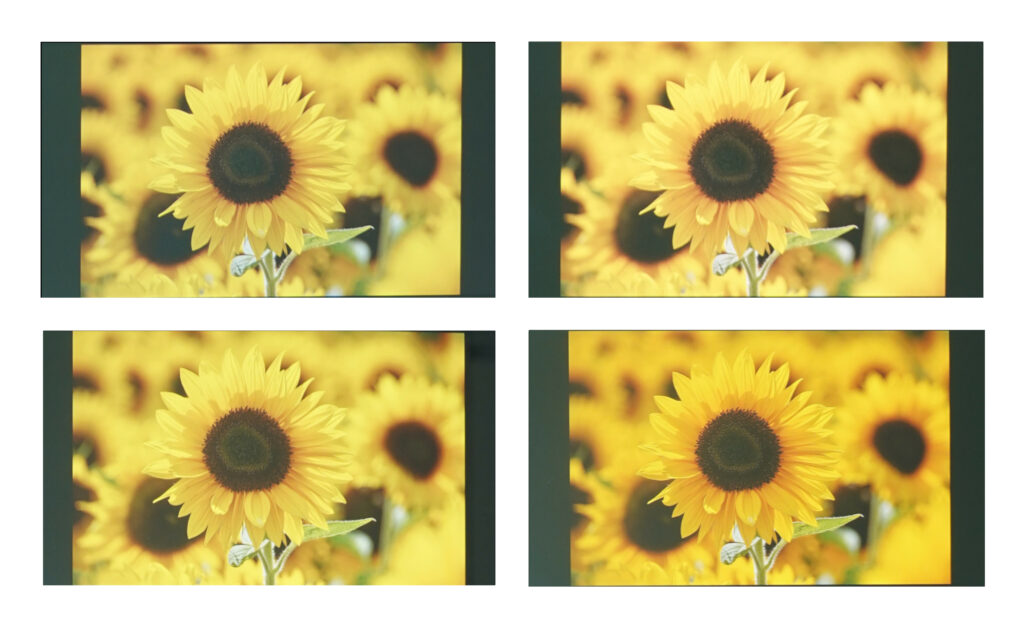

Color rendering indoors (1000 lux)
Clockwise from top left: Sony Xperia 5 V, Sony Xperia 5 IV, Samsung Galaxy S23, Apple iPhone 14
(Photos for illustration only)

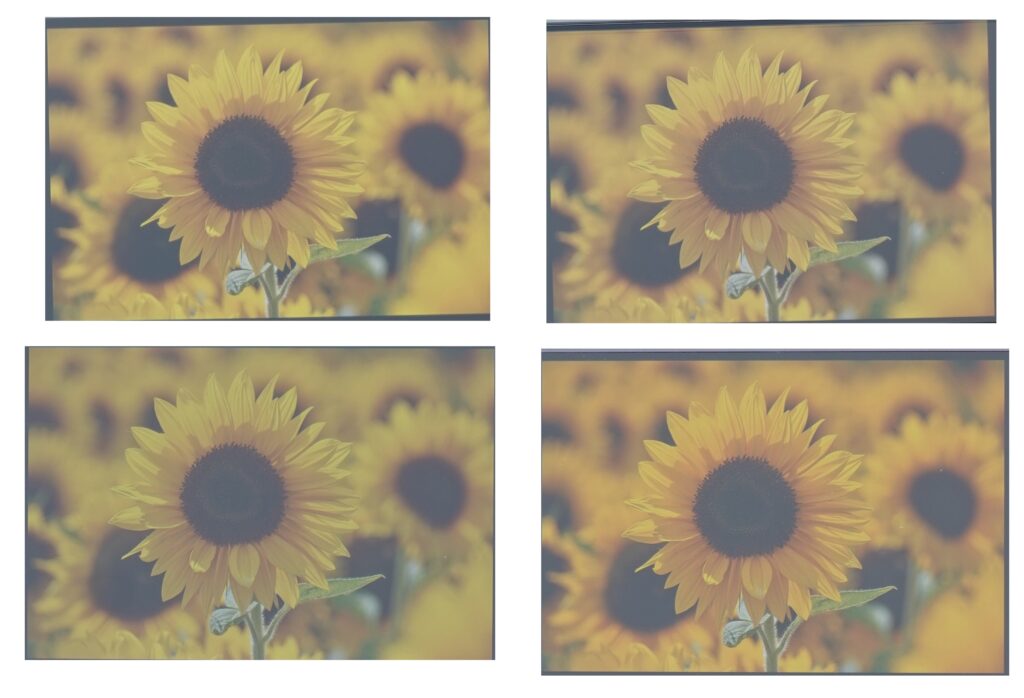

Color rendering outdoors (20 000 lux)
Clockwise from top left: Sony Xperia 5 V, Sony Xperia 5 IV, Samsung Galaxy S23, Apple iPhone 14
(Photos for illustration only)
Color fidelity measurements

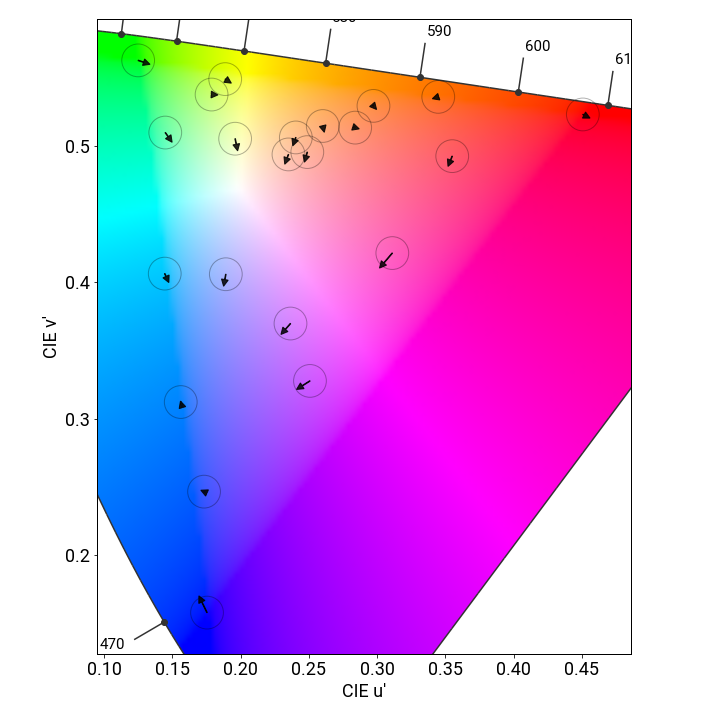

Sony Xperia 5 V, color fidelity at 1000 lux in the sRGB color space

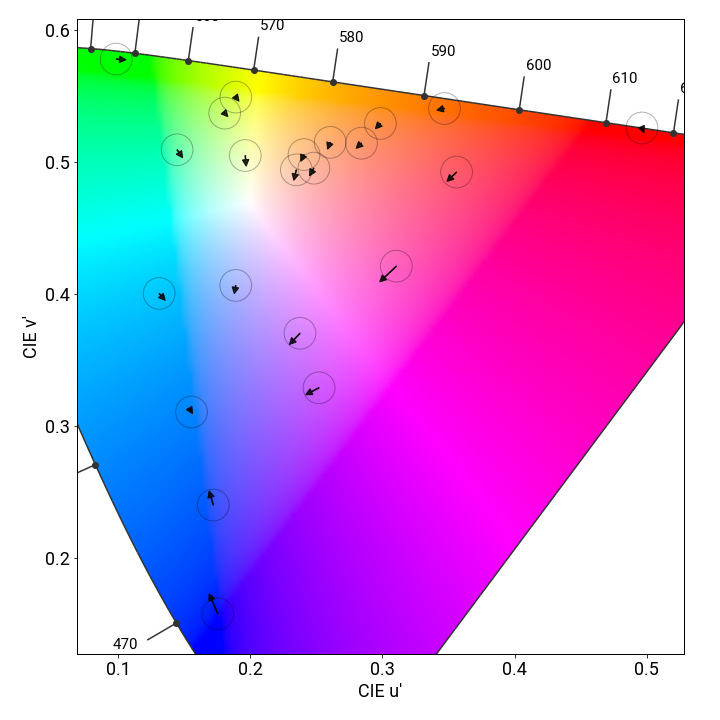

Sony Xperia 5 V, color fidelity at 1000 lux in the Display-P3 color space
Each arrow represents the color difference between a target color pattern (base of the arrow) and its actual measurement (tip of the arrow). The longer the arrow, the more visible the color difference is. If the arrow stays within the circle, the color difference will be visible only to trained eyes.
Color behavior on angle
This graph shows the color shift when the screen is at an angle. Each dot represents a measurement at a particular angle. Dots inside the inner circle exhibit no color shift in angle; those between the inner and outer circle have shifts that only trained experts will see; but those falling outside the outer circle are noticeable.
Rainbow effect at an angle
The Sony Xperia 5 V viewed at an angle: alternating pink and blue stripes are visible.
(Photos for illustration only)

Video

121

Sony Xperia 5 V

165

Samsung Galaxy Z Fold6
How Display Video score is composed

Our video attribute evaluates the Standard Dynamic Range (SDR) and High Dynamic Range (HDR10) video handling of each device in indoor and low-light conditions. We measure tone mapping, color gamut, brightness and contrast of the display. We perform perceptual analysis against our professional reference monitor (Sony BVM-HX310) to ensure that the rendering respects the artistic intent.

Video brightness at 10% APL in the dark ( < 5 lux)


Video rendering in a low-light (0 lux) environment
Clockwise from top left: Sony Xperia 5 V, Sony Xperia 5 IV, Samsung Galaxy S23, Apple iPhone 14
(Photos for illustration only)

Clockwise from top left: Sony Xperia 5 V, Sony Xperia 5 IV, Samsung Galaxy S23, Apple iPhone 14
(Photos for illustration only)
Gamut coverage for video content
HDR10 Gamut coverage
SDR Gamut coverage
The primary colors are measured both in HDR10 and SDR. The extracted color gamut shows the extent of the color area that the device can render. To respect the artistic intent, the measured gamut should match the master color space of each video.

Motion

Sony Xperia 5 V

How Display Motion score is composed

The motion attribute evaluates the handling of dynamic contents. Frame drops, motion blur, and playback artifacts are scrutinized using games and videos.


Video frame drops
30 fps content
60 fps content
These long exposure photos present the number of frame irregularities in a 30-second video. A good performance shows a regular pattern (either a flat gray image or a pull-down pattern).

Touch

127

Sony Xperia 5 V

164

Google Pixel 7 Pro
How Display Touch score is composed

To evaluate touch, DXOMARK uses a touch robot and a high-speed camera to play and record a set of scenarios for smoothness, accuracy and response-time evaluation.

Average Touch Response Time Sony Xperia 5 V
89 ms
Fast
Good
Bad
Slow
This response time test precisely evaluates the time elapsed between a single touch of the robot on the screen and the displayed action. This test is applied to activities that require high reactivity, such as gaming.

Artifacts

Sony Xperia 5 V

How Display Artifacts score is composed

Evaluating artifacts means checking for the performance, image rendering and motion flaws that can affect the end-user experience. DXOMARK measures precisely the device’s reflectance and the presence of flicker, and assesses the impact of residual aliasing when playing video games, among other characteristics.

Average Reflectance (SCI) Sony Xperia 5 V
5 %
Low
Good
Bad
High
SCI stands for Specular Component Included, which measures both the diffuse reflection and the specular reflection. Reflection from a simple glass sheet is around 4%, while it reaches about 6% for a plastic sheet. Although smartphones’ first surface is made of glass, their total reflection (without coating) is usually around 5% due to multiple reflections created by the complex optical stack.
Reflectance (SCI)
Measurements above show the reflection of the device within the visible spectrum range (400 nm to 700 nm). It includes both diffuse and specular reflection.
PWM Frequency Sony Xperia 5 V
480 Hz
Bad
Good
Bad
Great
Displays flicker for 2 main reasons: refresh rate and Pulse Width Modulation. Pulse width modulation is a modulation technique that generates variable-width pulses to represent the amplitude of an analog input signal. This measurement is important for comfort because flickering at low frequencies can be perceived by some individuals, and in the most extreme cases, can induce seizures. Some experiments show that discomfort can appear at a higher frequency. A high PWM frequency (>1500 Hz) tends to be less disturbing for users.
Temporal Light Modulation
This graph represents the frequencies of lighting variation; the highest peak gives the main flicker frequency. The combination of a low frequency and a high peak is susceptible to inducing eye fatigue. Displays flicker for 2 main reasons: refresh rate and Pulse Width Modulation. This measurement is important for comfort because flickering at low frequencies can be perceived by some individuals, and in the most extreme cases, can induce seizures. Some experiments show that discomfort can appear at a higher frequency. A high PWM frequency (>1500 Hz) tends to be safer for users.

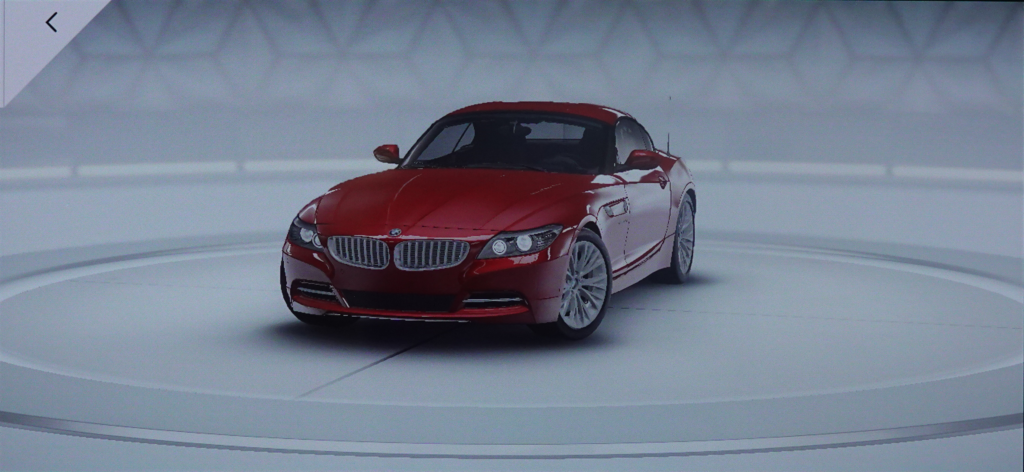

Aliasing (closeup)
Sony Xperia 5 V
(Photos for illustration only)

Sony Xperia 5 V – Crop 1
Sony Xperia 5 V – Crop 2
Sony Xperia 5 V – Crop 3
