Smartphones  >  Xiaomi 13 Pro  >  Display Test Results
Xiaomi 13 Pro
Ultra-Premium ?

Xiaomi 13 Pro Display test

OTHER AVAILABLE TESTS FOR THIS DEVICE

We put the Xiaomi 13 Pro through our rigorous DXOMARK Display test suite to measure its performance across six criteria. In this test results, we will break down how it fared in a variety of tests and several common use cases.

Overview

Key display specifications:

  • 6.73 inches AMOLED, (~90.8% screen-to-body ratio)
  • Dimensions: 162.9 x 74.6 x 8.38 mm (6.41 x 2.94 x 0.34 inches)
  • Resolution: 1440 x 3200 pixels, (~521 ppi density)
  • Aspect ratio: 20:9
  • Refresh rate: 120 Hz

Scoring

Sub-scores and attributes included in the calculations of the global score.

Xiaomi 13 Pro Xiaomi 13 Pro
136
display
144

163

159

164

121

162

130

159

109

170

130

163

Pros

  • Good color fidelity
  • Well-managed contrast and colors for watching HDR10 content
  • Flicker-free display, and brightness adapted for low-light use

Cons

  • Poor readability under sunlight
  • Low default brightness level for HDR10 videos
  • Frame mismatches when playing videos

The Xiaomi 13 Pro’s flicker-free display provided an overall satisfying experience and finds itself in the upper portion of our database, with a very strong showing in color.

Brightness adaptation was good in most conditions except indoors, where brightness was lower than its competitors. Screen readability diminished when the device was used under sunlight as details were lost, especially in dark areas. In addition, our engineers were eager to put Xiaomi 13 Pro’s advertised 1900 nit peak brightness to the test, but their measurements reached 1670 nits of peak brightness.

Both contrast and colors were well-managed on the device, particularly when watching HDR10 video content. But brightness adaptation to HDR10 content was low, compared with the adaptation of other devices, which feature 10 nits to 15 nits of more brightness. Xiaomi 13 Pro users might need to calibrate the brightness to get a more satisfying HDR10 rendering. In other areas, the Xiaomi 13 Pro’s brightness and contrast levels were little changed from its predecessor, the Xiaomi 12 Pro.

When it comes to the video game experience, the device showed no frame mismatches, but ghost touches were frequent.

Test summary

About DXOMARK Display tests: For scoring and analysis in our smartphone and other display reviews, DXOMARK engineers perform a variety of objective and perceptual tests under controlled lab and real-life conditions. Note that we evaluate display attributes using only the device’s built-in display hardware and its still image (gallery) and video apps at their default settings. (For in-depth information about how we evaluate smartphone and other displays, check out our articles, “How DXOMARK tests display quality” and “A closer look at DXOMARK Display testing.

The following section gathers key elements of our exhaustive tests and analyses performed in DXOMARK laboratories. Detailed performance evaluations under the form of reports are available upon request. Do not hesitate to contact us.

Readability

144

Xiaomi 13 Pro

163

Samsung Galaxy S24+
How Display Readability score is composed

Readability evaluates how easily and comfortably users can read still content (photos & web) on the display under different real-life conditions. DXOMARK uses its Display Bench to recreate ambient light conditions ranging from total darkness to bright sunlight. In addition to laboratory tests, perceptual analysis is also made in real-life environments.

Luminance under various lighting conditions
Contrast under various lighting conditions


Readability in an indoor (1000 lux) environment
From left to right: Xiaomi 13 Pro, Xiaomi 12 Pro, Google Pixel 7 Pro, Apple iPhone 14
(Photos for illustration only)


Readability in a sunlight (>90 000 lux) environment
From left to right: Xiaomi 13 Pro, Xiaomi 12 Pro, Google Pixel 7 Pro, Apple iPhone 14
(Photos for illustration only)

Luminance uniformity measurement
This graph shows the uniformity of the display with a 20% gray pattern. The more visible the green color, the more uniform the display.

Color

159

Xiaomi 13 Pro

164

Google Pixel 8 Pro
How Display Color score is composed

The color attribute evaluates the capacity of the device to accurately reproduce colors. The measurements taken are for fidelity, white point color, and gamut coverage. We perform color evaluations for different lighting conditions to see how well the device can manage color in the surrounding environment. Colors are measured using a spectrophotometer in a controlled lighting environment. Perceptual analysis of color rendering is against the reference pattern displayed on a calibrated professional monitor.

White point under D65 illuminant at 1000 lux

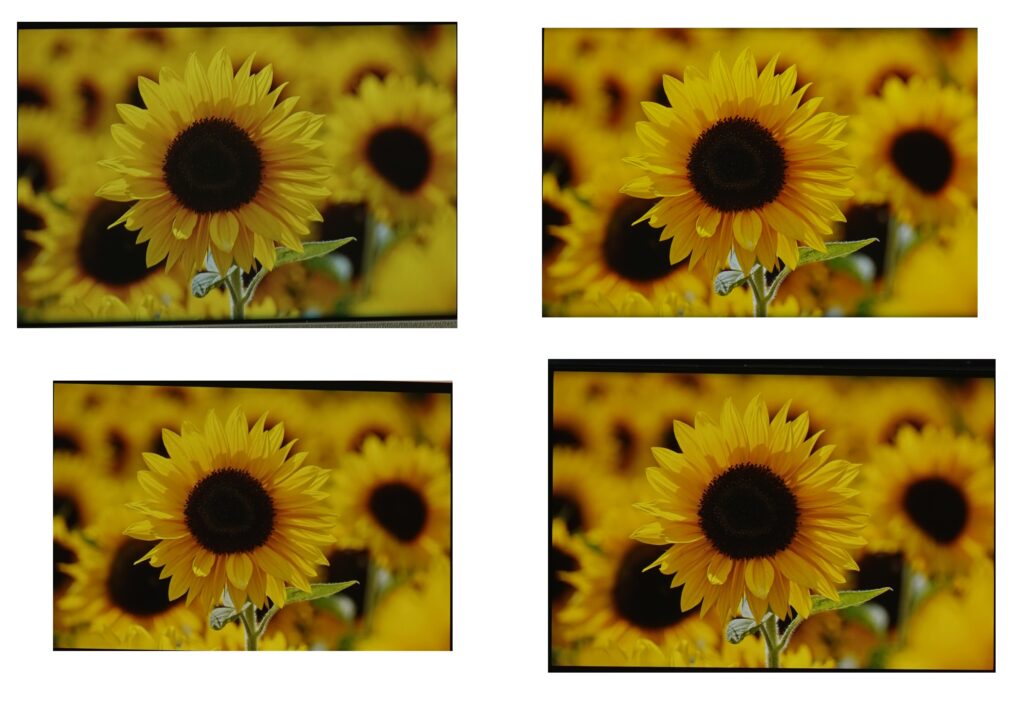

Color rendering indoors (1000 lux)
Clockwise from top left: Xiaomi 13 Pro, Xiaomi 12 Pro, Google Pixel 7 Pro, Apple iPhone 14
(Photos for illustration only)


Color rendering in sunlight (>90 000 lux)
Clockwise from top left: Xiaomi 13 Pro, Xiaomi 12 Pro, Google Pixel 7 Pro, Apple iPhone 14
(Photos for illustration only)
Color fidelity measurements

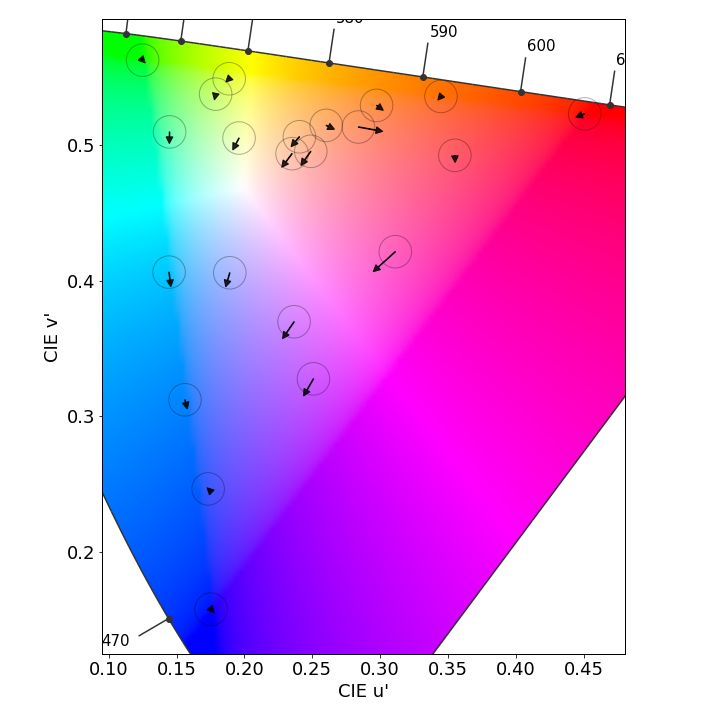

Xiaomi 13 Pro, color fidelity at 1000 lux in the sRGB color space

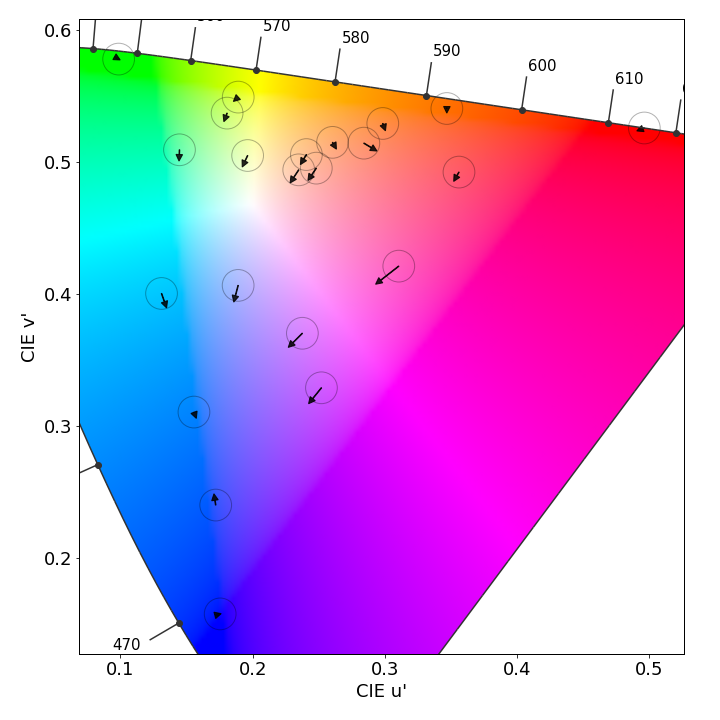

Xiaomi 13 Pro, color fidelity at 1000 lux in the Display-P3 color space
Each arrow represents the color difference between a target color pattern (base of the arrow) and its actual measurement (tip of the arrow). The longer the arrow, the more visible the color difference is. If the arrow stays within the circle, the color difference will be visible only to trained eyes.
Color behavior on angle
This graph shows the color shift when the screen is at an angle. Each dot represents a measurement at a particular angle. Dots inside the inner circle exhibit no color shift in angle; those between the inner and outer circle have shifts that only trained experts will see; but those falling outside the outer circle are noticeable.

Video

121

Xiaomi 13 Pro

162

Samsung Galaxy S23 (Snapdragon)
How Display Video score is composed

Our video attribute evaluates the Standard Dynamic Range (SDR) and High Dynamic Range (HDR10) video handling of each device in indoor and low-light conditions. We measure tone mapping, color gamut, brightness and contrast of the display. We perform perceptual analysis against our professional reference monitor (Sony BVM-HX310) to ensure that the rendering respects the artistic intent.

Video brightness at 10% APL in the dark ( < 5 lux)


Video rendering in a low-light (0 lux) environment
Clockwise from top left: Xiaomi 13 Pro, Xiaomi 12 Pro, Google Pixel 7 Pro, Apple iPhone 14
(Photos for illustration only)

Clockwise from top left: Xiaomi 13 Pro, Xiaomi 12 Pro, Google Pixel 7 Pro, Apple iPhone 14
(Photos for illustration only)
Gamut coverage for video content
HDR10 Gamut coverage

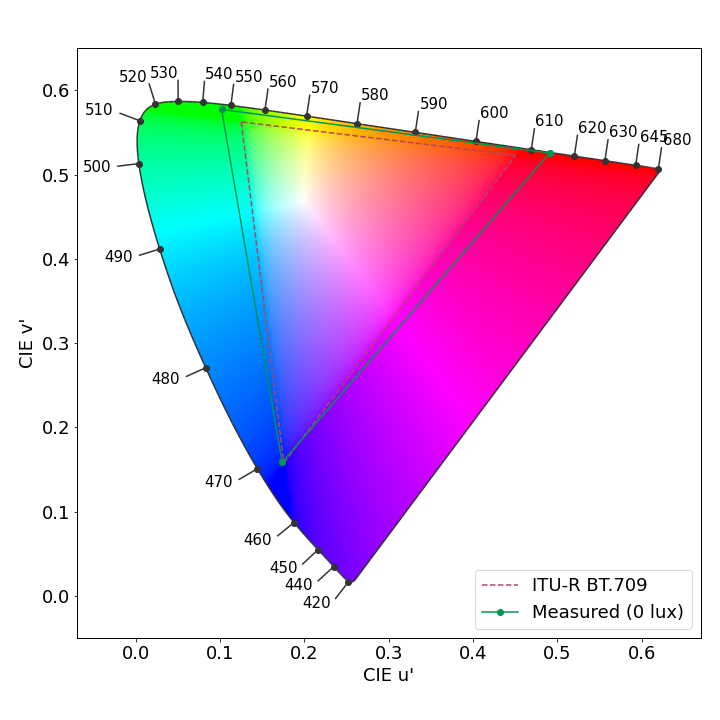

SDR Gamut coverage
The primary colors are measured both in HDR10 and SDR. The extracted color gamut shows the extent of the color area that the device can render. To respect the artistic intent, the measured gamut should match the master color space of each video.

Motion

130

Xiaomi 13 Pro

159

Honor Magic6 Pro
How Display Motion score is composed

The motion attribute evaluates the handling of dynamic contents. Frame drops, motion blur, and playback artifacts are scrutinized using games and videos.


Video frame drops
30 fps content
60 fps content
These long exposure photos present the number of frame irregularities in a 30-second video. A good performance shows a regular pattern (either a flat gray image or a pull-down pattern).

Touch

109

Xiaomi 13 Pro

170

Samsung Galaxy S24+
How Display Touch score is composed

To evaluate touch, DXOMARK uses a touch robot and a high-speed camera to play and record a set of scenarios for smoothness, accuracy and response-time evaluation.

Average Touch Response Time Xiaomi 13 Pro
89 ms
Fast
Good
Bad
Slow
This response time test precisely evaluates the time elapsed between a single touch of the robot on the screen and the displayed action. This test is applied to activities that require high reactivity, such as gaming.

Artifacts

130

Xiaomi 13 Pro

163

OnePlus Open
How Display Artifacts score is composed

Evaluating artifacts means checking for the performance, image rendering and motion flaws that can affect the end-user experience. DXOMARK measures precisely the device’s reflectance and the presence of flicker, and assesses the impact of residual aliasing when playing video games, among other characteristics.

Average Reflectance (SCI) Xiaomi 13 Pro
4.7 %
Low
Good
Bad
High
SCI stands for Specular Component Included, which measures both the diffuse reflection and the specular reflection. Reflection from a simple glass sheet is around 4%, while it reaches about 6% for a plastic sheet. Although smartphones’ first surface is made of glass, their total reflection (without coating) is usually around 5% due to multiple reflections created by the complex optical stack.
Reflectance (SCI)
Measurements above show the reflection of the device within the visible spectrum range (400 nm to 700 nm). It includes both diffuse and specular reflection.
PWM Frequency Xiaomi 13 Pro
1920 Hz
Bad
Good
Bad
Great
Displays flicker for 2 main reasons: refresh rate and Pulse Width Modulation. Pulse width modulation is a modulation technique that generates variable-width pulses to represent the amplitude of an analog input signal. This measurement is important for comfort because flickering at low frequencies can be perceived by some individuals, and in the most extreme cases, can induce seizures. Some experiments show that discomfort can appear at a higher frequency. A high PWM frequency (>1500 Hz) tends to be safer for users.
Temporal Light Modulation
This graph represents the frequencies of lighting variation; the highest peak gives the main flicker frequency. The combination of a low frequency and a high peak is susceptible to inducing eye fatigue. Displays flicker for 2 main reasons: refresh rate and Pulse Width Modulation. This measurement is important for comfort because flickering at low frequencies can be perceived by some individuals, and in the most extreme cases, can induce seizures. Some experiments show that discomfort can appear at a higher frequency. A high PWM frequency (>1500 Hz) tends to be safer for users.
Aliasing (closeup)
Xiaomi 13 Pro
(Photo for illustration only)
