DxOMark Selfie: How we test smartphone front camera still image quality

We’ve already introduced you to our new DxOMark Selfie test protocol for smartphone front cameras. In this article, we want to dive a little deeper and explain in more detail how we test front cameras to give you a better understanding of our approach and methodology. We’ll start out with some general information about our testing methods and how the overall score is generated, and then provide more in-depth information about how we test for the individual sub-scores. (This article focuses on still images; if you’d like to find out more about how we test the video capabilities of smartphone front cameras, please click here.)

Testing and scoring

As with our DxOMark Mobile main camera test protocol, DxOMark also tests front cameras using the default modes of international firmware versions. In the process of testing a front camera, our engineers capture more than 1500 sample images and several hours of video of test charts and scenes in the DxOMark image quality laboratory, as well as a variety of indoor and outdoor “real-life” scenes in and around DxOMark HQ in Paris. To test repeatability and consistency of results, we always take a series of images of the same test scene, rather than just individual shots.

While our front camera testing is very similar to our DxOMark Mobile test protocol for smartphone main cameras, we have made some important modifications to take into account the way people primarily use front cameras. People capture selfies outdoors in bright light or indoors under many types of artificial lighting, and by definition show at least one human subject—the photographer herself or himself—in the image, which is why manufacturers should ideally optimize front cameras for portraiture at relatively short shooting distances and in a variety of lighting situations.

Subject distance and variation

Subject distance is very important in Selfie testing, but obviously it can vary: some users like to capture close-up portraits of the face. In this kind of image, the attention tends to be focused on the subject and the rendering of the background is pretty much irrelevant. Another typical use case is a self-portrait taken at arm’s length. In this type of selfie, the subject is still the most prominent feature, but the background contains elements that the user wants to capture—for example, city sights or natural features in a landscape. Further, many users like to mount their smartphones on selfie-sticks in order to capture as much of the background scenery as possible, so the background should be just as well-exposed and sharp as the subject(s) in the foreground in the image.

To cover these most-typical front camera use cases, we perform our DxOMark Selfie tests at three different subject distances:

  • 30cm, close-up portrait
  • 55cm, portrait
  • 120cm, portrait with landscape (shot with selfie-stick)
Close-up portrait (30cm)
Portrait (55cm)
Portrait shot with selfie-stick (120cm)

It is a real challenge for most front cameras to produce good image quality at all three of these subject distances, mainly because focus, exposure, and other camera parameters have to be very well-balanced to achieve good results in such a wide range of shooting situations.

It’s not only the distance between camera and subjects that can vary in selfie photography, of course, given that the subjects themselves can vary in terms of both numbers and skin tones. This is why we create and evaluate test scenes in the studio and outdoors not only with individual subjects but also with groups of people. Shooting group selfies allows us to evaluate how a camera’s focus, white balance, and exposure systems deal with scenes that feature multiple human subjects in several focal planes and with a range of skin tones.

Outdoor selfie testing with a variation of skin tones
One of several studio setups for group selfie testing

Light conditions

As with our DxOMark Mobile main camera test protocol, we perform all lab studio tests at light levels that range from the equivalent of dim candlelight to a very bright sunny day, as follows:

  • Outdoor (Bright light, 1000–10000 lux)
  • Indoor (typical indoor light conditions, 100–300 lux)
  • Low light (typical light conditions in a bar or concert venue at night, 1–20 lux)
We undertake DxOMark Selfie testing under a wide range of light conditions.

We capture our real-life test samples at several outdoor locations on bright and sunny days, as well as inside the DxOMark offices under typical artificial indoor lighting.

The Selfie score

We generate the DxOMark Selfie scores from large number of objective measurements obtained and calculated directly by the test equipment, and from perceptual tests for which we use a sophisticated set of metrics to allow a panel of image experts to compare various aspects of image quality requiring human judgment. We then use a sophisticated set of formulas and weighting systems to condense these objective and perceptual measurements into sub-scores, and then as a last step, we use the sub-scores to compute the Photo and Video scores and the Overall Selfie score.

We compute the Overall score from a large number of sub-scores and attribute measurements.

The DxOMark Selfie sub-scores

In this section you can find more detailed information about all the image attributes we are testing and analyzing in order to compute our sub-scores. We’ll also show you some of the custom test equipment we have newly developed for the DxOMark Selfie protocol in addition to a selection of real-life samples and graphs that we are using to visualize the results.

Exposure and Contrast

Like most of our scores, Exposure and Contrast is computed from a mixture of objective and perceptual measurements. When measuring exposure and contrast for selfies, we put a strong emphasis on the target exposure of the face, but we also look at the overall exposure of the image and the HDR capabilities of a camera—all of which can be important when the foreground of a scene is much brighter than the background, or vice versa. We also report if contrast is unusually high or low, but we don’t feed this information into the score, as contrast is mainly a matter of personal taste.

We have developed a dedicated weighting system that we use to compute the Exposure and Contrast sub-score from a large number of perceptual and objective measurements of images taken at different subject distances, based on the following image quality attributes:

  • Face target exposure
  • Face target exposure consistency across several faces in group selfies
  • Overall target exposure
  • Highlight clipping on skin tones
  • Highlight and shadow detail in the background

In our in-depth technical reports, we provide an overview of objective measurements (see graph below the left) and perceptual scores. We also prepare a variety of graphs to visualize objective measurements, such as the exposure graph below on the right. It shows target exposure at light levels from 1 to 1000 lux, and for a range of illuminants, including daylight and tungsten.

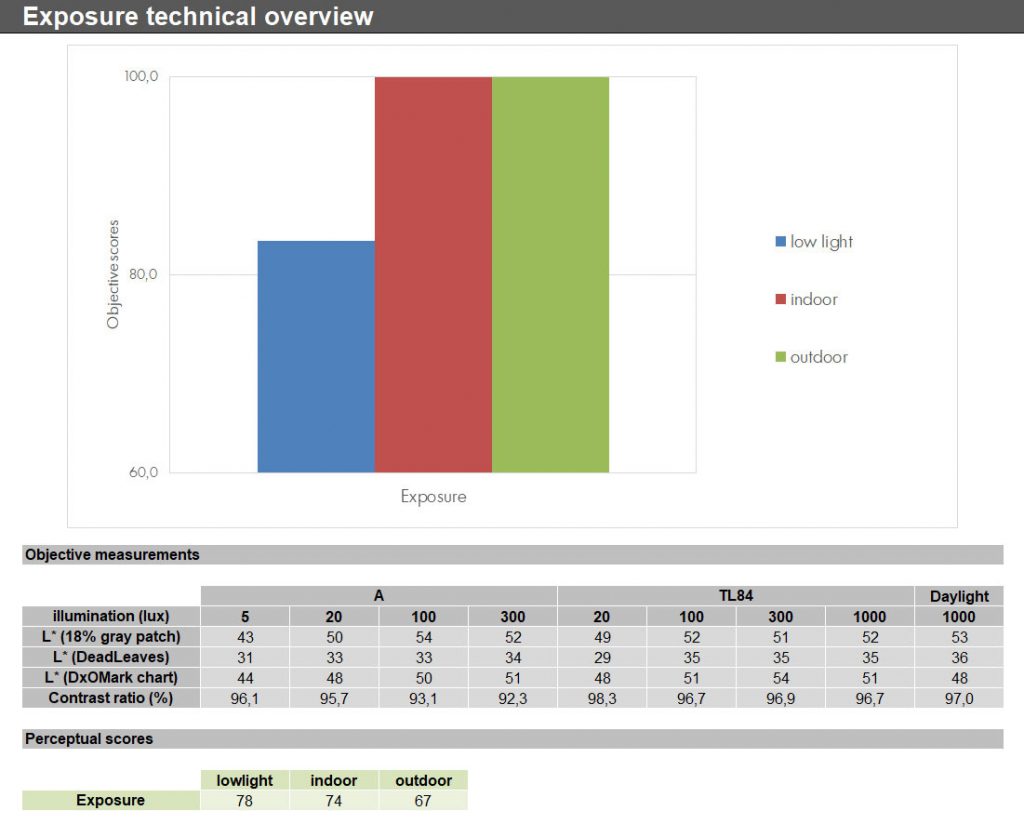

Exposure technical overview
Exposure across a range of illuminants

In addition to the lab tests, we evaluate Exposure and Contrast using our perceptual database of scenes covering different skin tones, subjects distances, lighting conditions and group shots. For example, the Eiffel Tower shot below on the left allows us to check exposure on the face versus the background and tells us a lot about the dynamic range of a camera as the background is brighter than the subject.

We also take sample shots indoors in low light. In the example below on the right, we use lateral lighting to see how well the camera’s exposure system deals with harsh contrasts on a variety of skin tones.

Eiffel Tower test scene
Low-light test scene with lateral lighting

In our perceptual analysis of group selfies, we check the exposure system’s ability to deal with multiple subjects and skin tones in the same scene. In the sample shot below on the left, some highlight and shadow clipping is visible on skin tones, but the camera manages a well-balanced exposure overall. The shot on the right is strongly overexposed, and the exposure system brightened the dark skin tones of the subject in the foreground too much.

Group selfie with good exposure
Overexposed group selfie

A wide dynamic range is important when trying to avoid highlight or shadow clipping on skin tones or with backgrounds that are much brighter than the main subject of the image. In our backlit portrait scenes we test how the exposure system deals with subjects of varying skin tones in front of a bright background. As usual, face exposure is the top priority, but we also value a good balance between foreground and background exposure. As you can see in the images below on the right, current front camera models deliver very different results in this scene.

Highlight clipping on skin tones
Backlit portrait with light and dark skin tones, results from different cameras

Color

When testing color in front camera images, we focus on color on the subject’s face and skin tones, but we also look at the overall color rendering, the white balance, and additional color metrics in the other parts of the frame. For the Color sub-score, we measure and analyze the following image quality attributes:

  • White balance accuracy and repeatability
  • Color rendering and repeatability
  • Skin tone color rendering
  • Color shading

We take objective color measurements using Gretag ColorChecker, Dead Leaves, and our own custom DxOMark studio charts at different light levels and under different light sources. We produce measurement charts for color rendering, white balance accuracy, and color shading (among others), and have developed an ellipsoid scoring system for evaluating white balance and color saturation. This system takes into account the fact that good and acceptable color manifests on a continuum rather than having a single fixed value. Color tones within the small green ellipsoid (chart below on the right) are close enough to the target color to score maximum points; colors within the larger red ellipsoid are still acceptable, but score lower.

Color rendering for different light sources and levels
Example of ellipsoid scoring system measurement of white balance and color saturation

In our in-depth technical reports, we also provide a visual representation of the results, showing the color rendering of the camera (small squares) embedded in the target color (larger squares in the illustration below). This allows us to quickly identify problem areas and opportunities for improvements. As one would expect for our Selfie protocol, our main focus is on skin tone rendering (top-left color array below), but we examine and score the rendering of all tones.

Visual presentation of a camera’s color rendering

For our perceptual analysis of color, we use many of the same outdoor scenes that we also use to evaluate exposure and other metrics. However, we have also created several color-specific perceptual scenes, such as the indoor setups shown in the images below. The left scene allows us to see how the camera deals with different color light sources in low light. And as white balance systems can be confused by single-colored backgrounds, we designed the scene on the right for use with a range of different-colored backgrounds and artificial lighting.

Indoor color testing with colored light sources in the frame
Indoor color testing with specific background colors

Focus

For the Focus sub-score, we use a focus range chart with a portrait in the lab and a number of real-life scenes to measure and analyze the following image quality attributes:

  • Focus range
  • Depth of field
  • Focus repeatability and shooting time (only for front cameras with autofocus systems)

The focus range tells us how good the camera is at focusing on the subject at different shooting distances. In our scoring, we put the most weight on the closer 30cm and 55cm shooting distances, as they represent the largest proportion of real-life use, but we also test at selfie-stick shooting distance (120cm). In addition, we test repeatability and shooting time for phone cameras with an autofocus system by taking multiple shots at the same subject distance and checking the consistency of the results.

Focus testing in the lab

Depth of field is the distance between the closest and farthest objects in a photo which appear acceptably sharp. Good depth of field is essential for images in which the background is an important element—for example, portraits with a tourist site behind the subject, or in group selfies, when we want good sharpness on all subjects, even if they are not in the same focal plane. Depth of field is less important for close-up portraits showing very little background, which is why we put more weight in our scoring on longer shooting distances.

As usual, we perform focus tests at different light levels, and compute scores from objective and perceptual measurements. In the laboratory, we use a focus chart with a portrait image that we capture at three different subject distances.

Focus chart with portrait in the lab

For our perceptual analysis, we capture individual and groups of subjects at different shooting distances, thus allowing us to check both focus range and depth of field in real-life images.

Real-life testing at different subject distances



A wide depth of field is useful for images with important elements in the background, and for group portraits with the subjects in different focal planes, such as in this example.
The face in the focal plane is well-focused and sharp (crop).
The faces towards the back of the scene are noticeably softer (crop).

Texture and Noise

For this sub-score, we analyze images objectively and perceptually to determine how well phone cameras render fine detail and textures, and how much noise is visible in different parts of the image. Texture and noise are strongly interlinked: strong noise reduction in image processing reduces visible noise, but also tends to decrease the level of detail in an image, so the two attributes should always looked at in conjunction. The best camera isn’t necessarily the one with the best texture score or the best noise score, but rather the best balance between the two.

Fully-automated texture testing with moving subjects and shaking platform
Control station

For the Texture and Noise sub-scores, we measure and analyze the following image quality attributes using a Dead Leaves chart and several custom-made lifelike mannequins in controlled lab conditions, as well as using real-life images:

Technical overview for texture and noise

As usual, we undertake all tests at different light levels. In addition, we have designed texture tests for static (landscape) and moving (family) scenes. Moving scenes often pose problems for some cameras, especially in low light, as slow shutter speeds can cause blur on moving subjects or through camera shake (we use an automated hydraulic shaking platform in the lab to simulate the latter).

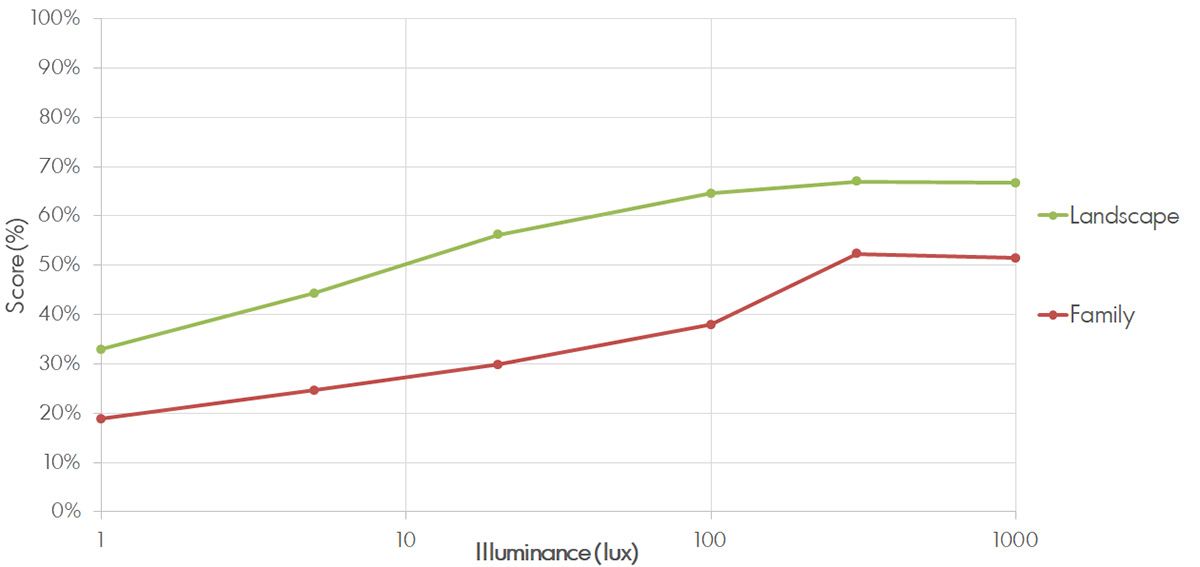

We measure texture acutance for static (landscape) and moving (family) scenes.
Both luminance and chromatic noise feed into the Noise score.

In addition to human subjects, we perform our perceptual analysis using a lifelike mannequin that was custom built for DxOMark Image Labs. Perceptual analysis focuses on specific details on a face, such as the eyes, eyebrows, eyelashes, lips, and beard. Many device manufacturers choose to apply smoothing effects to the skin of selfie subjects; in the other direction, over-sharpened skin textures and too strong micro-contrast can result in an unnatural rendering of skin detail, so we keep a close eye on both those effects, and also check that skin is rendered in a consistent way across the face.

We use several lifelike mannequins for testing of detail and noise.
We perform perceptual texture analysis at different shooting distances and light levels.

Artifacts

For artifacts, we use a mixture of objective testing with MTF, Dot, and Grey charts in the studio, and perceptual analysis of real-life images. For our Selfie test protocol, we are looking for the same kinds of artifacts as for our DxOMark Mobile main camera testing (including the ones in the list below), and also for any other unusual effects in our test images:

The Artifacts section in our technical reports provides an overview of all objective and perceptual measurements. Based on the severity and frequency of artifacts, we deduct penalty points from a perfect score of 100 to compute the overall Artifacts score.

Unnatural rendering of skin texture in faces
Crop
Crop

Flash

For the Flash sub-score, we perform a subset of our full Selfie test protocol, looking at most of the image quality attributes that we evaluate for non-flash capture. Along with capturing real-life images in a dark indoor setting, we measure and analyze the following image quality attributes, using Gretag ColorChecker, Dead Leaves, and Gray charts in the lab:

  • Target exposure (accuracy and repeatability)
  • White balance (accuracy and repeatability)
  • Color rendering
  • Color shading
  • Fall-off
  • Texture and Noise
  • Artifacts
  • Red-eye effect

For these objective measurements in the lab, we shoot at a distance of 55cm at 0 and 5 lux light levels.

Flash white balance and skin tone color chart
Flash texture chart

For perceptual testing, we shoot with the front camera flash (LED or display flash), manually activated at a distance of 55cm, and at light levels of 0 and 5 lux. We then check the resulting images for exposure on the face, white balance, and rendering of skin color, as well as for noise on the skin and for details on specific elements of the face, such as eyebrows or beard.

Samsung Galaxy S9 Plus, flash shot at 0 lux
Apple iPhone X, flash shot at 0 lux

Bokeh

Some current smartphone front cameras are capable of simulating the bokeh and shallow depth of field of a DSLR camera. As on main cameras, some models use a secondary lens to estimate the depth of a scene; others rely on a single lens and use purely computational methods to analyze depth. We test bokeh simulation in a laboratory setup, looking at both the quality of the bokeh (depth of field and shape), as well as at the artifacts that are often introduced when isolating a subject.

For the Bokeh sub-score, we measure and analyze the following image quality attributes:

  • Equivalent aperture (depth of field)
  • Depth estimation artifact
  • Shape of bokeh
  • Repeatability
  • Motion during capture
  • Noise consistency

For Bokeh, we evaluate all images perceptually, using test scenes in the studio as well as indoors and outdoors. We designed our test scenes to replicate a number of light conditions and to help experts evaluate all the image attributes listed above.

Samsung Galaxy S9 Plus, standard front camera shot
Samsung Galaxy S9 Plus, front camera shot with simulated bokeh effect



Apple iPhone X, bokeh shot
Apple iPhone X, bokeh shot
Apple iPhone X, bokeh shot
Crop, depth estimation errors
Crop, foreground blurring
Crop, blur transition

We hope you have found this overview of our front camera still image testing and evaluation useful. For an introduction to our new DxOMark Selfie test protocol, an article on how selfies have evolved over the years, and for more information on how we test and evaluate video quality for front cameras, please click on the following links:
